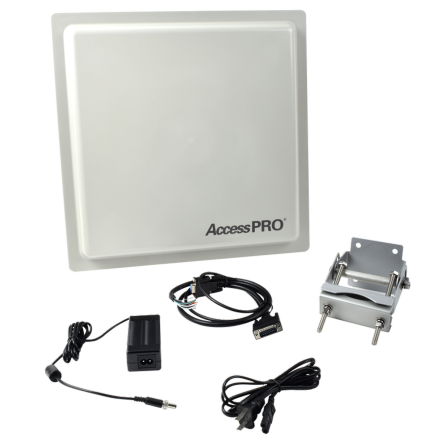

AccesPro PRO12RF Reader Long Range UHF up to 12 m 902 - 928 MHz Vehicular Access Control

Long Range proximity reader RFID (UHF)

Ideal for parking lots, residential complexes, corporations and any area with vehicular traffic

Features

• Operating frequency: 902 - 928 MHz

• Operation mode: FHSS

• Protocol EPC C1 GEN2

• Up to 12 m lineal range*

• Only compatible with ACCESS-CARD-EPC and ACCESS-TAG cards

• 26 bits Wiegand interface

• Programmable power: 0 - 30Dbm

• Integrated antenna: 12 dBi

• Operating temperature: -20 to 80 ºC

• Power supply: 12Vcc, 2.5  A (included)

• Dimensions: 17.32 x 17.32 x 1.97” in (44 x 44 x 5 cm)

• Weight: 4.41lb (2 kg)

Requires Access controller. Compatible with ROSSLARE (AAC215, AC225IPL, AC425IPL, and AC525), PCSC (NRX and IQ Series) and SYSCOM AcessPRO Series or any other system that supports Wiegand 26 bits interface.

*Distance can vary according to site conditions.

*It’s important to calibrate before installation, other installed Tags on the vehicle can interfere with the reading (Take this into consideration).

1 Year Warranty
