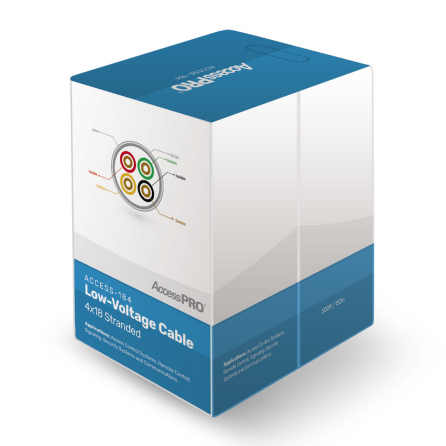

AccessPro ACCESS-184/500 Cable 4 Core 18 AWG 500Ft Reel, FRPVC, CM

4 Core 18 AWG Stranded Copper Conductor Individual insulation of High-Quality FRPVC

Outer Sheath PVC cover with anti-flame CM Ratings

Applications

• Industry: Access Control applications, analog signals ON / OFF.

• Security: Alarms and access control, the connection of the control panel with accessories such as motion sensors, magnetic plates, and counters, etc.

• Audio: Connecting speakers.

Physical Characteristics :

Conductor

• Size: 0.80mm²

• Formation: STR 16/30AWG x 4C

• Conductor: Pure Copper

Insulation

• Average Thickness: 0.25mm

• Nom. Diameter: 1.80±0.1mm

• Material: FRPVC- Fire Resistant Polyvinyl Chloride

• Color: Black, Red

Jacket

• Average Thickness: 0.6 mm

• Nom. Diameter: 4.8±0.2mm

• Material: CM Ratings PVC-Polyvinyl Chloride

• Color: White

• RoHS Compliant: Yes

Mechanical Characteristics

• DC Resistance,Max Ohm/km(20℃): 21.80

• Capacitance: 22.80 pF/ft. nom.

• Impedance: 67 Ohms nom

• Temperature: -20°C to 60°C

• Operating Voltage: Max. 300 Volts

• Industry Standard: ISO 9001:2015

Packing

• 500FT/152M- Easy Pull Box
