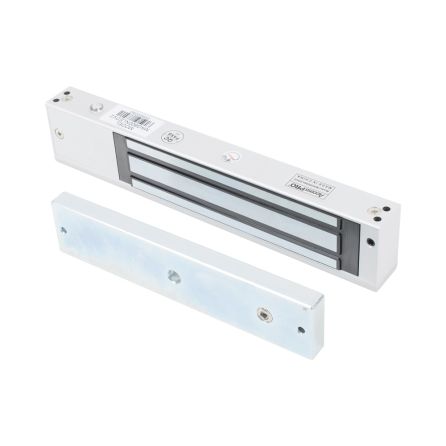

AccessPro MAG600NLED-UL Magnetic Lock 600 Lbs Anti-Residual Status LED UL

Specifications:

• Clamping force: 600lbs.

• Free design of residual magnetism.

• Ultra-bright indicator LED.

• Voltage: 12/24 Vcc + 10% (selectable by jumper).

• Current consumption: 12V / 520mA, 24V / 260mA.

• Operating temperature: 14- 131°F.

• Operating humidity: 0 to 90% (without condensation).

• Door sensor: NO / NC

• Magnet finish: anodized aluminum.

• Finishing of the plate: zinc.

• Dimensions of the magnet: 250 x 48.8 x 27.9 mm.

• Dimensions of the plate: 180 x 38.8 x 13.2 mm.

• Weight: 2.1 kg.

• UL Certified
