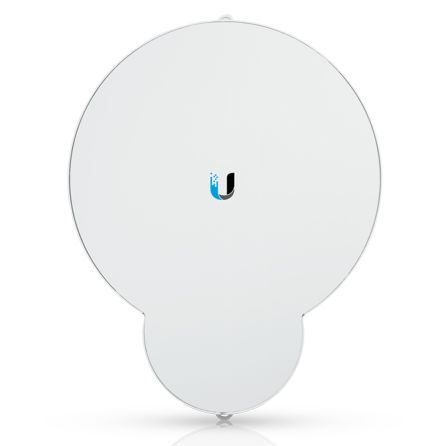

Ubiquiti AF-24HD US 24 GHz Full Duplex Point-to-Point 2 Gbps Radio

Introducing airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Efficient by Design

Every detail of airFiber was designed and engineered by the Ubiquiti R&D Team. From the silicon chip up to the innovative split-antenna architecture, the Ubiquiti R&D Team created airFiber to deliver superior throughput with efficiency. airFiber was purpose-built to create a high performance backhaul.

Best-in-Class Performance and Range

Our INVICTUS custom silicon dramatically improves wireless performance. The AF-24HD model supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.

The airFiber AF-24/AF-24HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range among 24 GHz products and allows for constellation threshold extension.

Specifications

* Operating Frequency 24.05 – 24.25 GHz
* Dimensions 593 x 768 x 370 mm (23.35 x 30.24 x 14.57")
* Weight 17.3 kg (38.14 lb) Mount Included
* Max. Power Consumption 50 W
* Power Supply 50V, 1.2A PoE GigE Adapter (Included)
* Power Method Passive Power over Ethernet
* Supported Voltage Range 42-58VDC
* Certifications CE, FCC, IC
* Wind Loading 770 N @ 200 km/hr (170 lbf @ 125 mph)
* Wind Survivability 200 km/hr (125 mph)
* Mounting Pole Mount Kit (Included)
* Operating Temperature -40 to 55° C (-40 to 131° F)
* LEDs

(8) Status LEDs:
Data Port Speed
Data Port Link/Activity
Configuration Port Speed
Configuration Port Link/Activity
GPS Synchronization
Modulation Mode
Master/Slave
RF Status
(1) Two-Digit LED Display Calibrated in dBm
