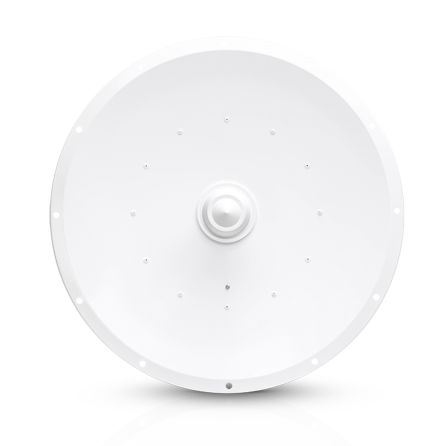

Ubiquiti AF-2G24-S45 2.4GHz airFiberX Dish 24dBi Slant 45

Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).

Powerful Performance

The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.

Specifications

• Dimensions ø650x295mm (ø 25.59 x 11.61")

• Weight 9.8 kg (21.61 lb)

• Frequency Range 2.3 - 2.7 GHz

• Gain 24 dBi

• + 45° Beamwidth 6.6° (3 dB)

• - 45° Beamwidth 6.8° (3 dB)

• F/B Ratio 28 dB

• Max. VSWR 1.6:1

• Wind Loading 787 N @ 200 km/h (177 lbf @125 mph)

• Wind Survivability 200 km/h (125 mph)

• Polarization Dual-Linear

• Cross-pol Isolation 35 dB Min.

• ETSI Speci cation EN 302 326 DN2
