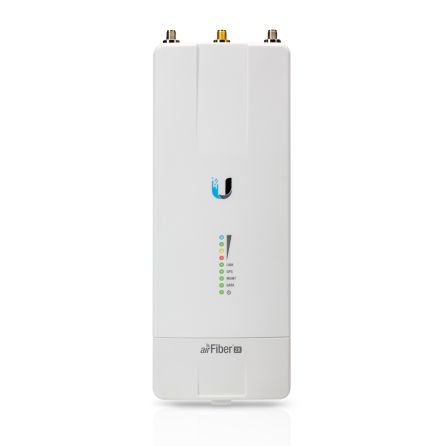

Ubiquiti AF-2X-US 2.4GHz. Carrier Backhaul Radio

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber® X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti® antennas.

Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point‑to‑Point (PtP) links.

The 2.4 GHz frequency band is free to use, worldwide; and with its proprietary protocol, the AF‑2X increases both range and delivered throughput in this popular band.

Specifications

* Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
* Weight 0.35 kg (0.77 lb)
* RF Connectors

(2) RP‑SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)

* GPS Antenna External, Magnetic Base
* Power Supply 24V, 1A PoE Gigabit Adapter (Included)
* Power Metido

Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (‑)

* Max. Power Consumption 17W @ Max. Power/Duty Cycle
* Supported Voltage Range 19‑29VDC
* Mounting

airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)

* Certifications CE, FCC, IC
* Operating Temperature ‑40 to 55° C (‑40 to 131° F)
