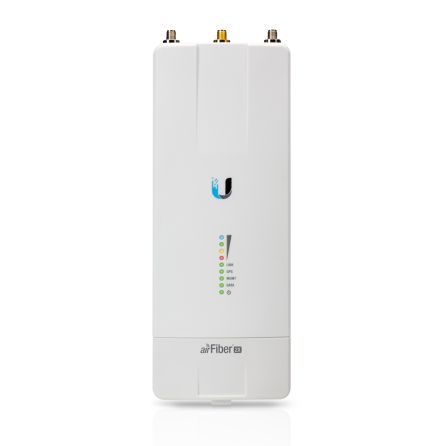

Ubiquiti AF-2X 2.4GHz. Carrier Backhaul Radio Worldwide

WARNING: WORLWIDE VERSIONS ARE NOT INTENDED FOR USE WITHIN THE UNITED STATE OR CANADA. THEY ARE FOR EXPORT ONLY. THEY ARE NOT ALLOWED TO BE USED OR INSTALLED IN THESE TERRITORIES, IT IS IMPERATIVE THAT ANY SHIPMENTS MADE WITHIN THE UNITED STATE OR CANADA BE THE US VERSION, IF YOU ARE BUYING THE WORLDWIDE VERSION YOU MUST COMPLETE THE FCC FORM. THERE WILL NOT EXCEPTIONS!

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber® X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti® antennas.

Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point‑to‑Point (PtP) links.

The 2.4 GHz frequency band is free to use, worldwide; and with its proprietary protocol, the AF‑2X increases both range and delivered throughput in this popular band.

Specifications

* Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
* Weight 0.35 kg (0.77 lb)
* RF Connectors

(2) RP‑SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)

* GPS Antenna External, Magnetic Base
* Power Supply 24V, 1A PoE Gigabit Adapter (Included)
* Power Metido

Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (‑)

* Max. Power Consumption 17W @ Max. Power/Duty Cycle
* Supported Voltage Range 19‑29VDC
* Mounting

airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)

* Certifications CE, FCC, IC
* Operating Temperature ‑40 to 55° C (‑40 to 131° F)
