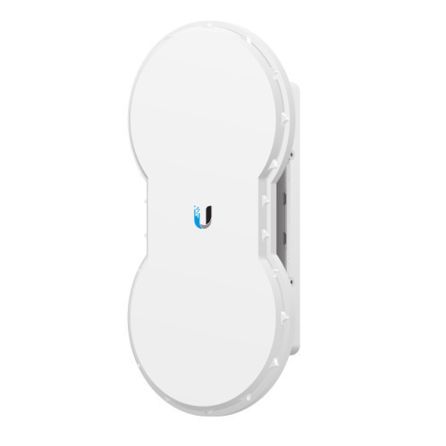

Ubiquiti AF5U 5 GHz. Full Duplex Point-to-Point Gigabit Radio

WARNING: WORLWIDE VERSIONS ARE NOT INTENDED FOR USE WITHIN THE UNITED STATE OR CANADA. THEY ARE FOR EXPORT ONLY. THEY ARE NOT ALLOWED TO BE USED OR INSTALLED IN THESE TERRITORIES, IT IS IMPERATIVE THAT ANY SHIPMENTS MADE WITHIN THE UNITED STATE OR CANADA BE THE US VERSION, IF YOU ARE BUYING THE WORLDWIDE VERSION YOU MUST COMPLETE THE FCC FORM. THERE WILL NOT EXCEPTIONS!

Introducing airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Efficient by Design

Every detail of airFiber was designed and engineered by the Ubiquiti R&D Team. From the silicon chip up to the innovative split-antenna architecture, the Ubiquiti R&D Team created airFiber to deliver superior throughput with efficiency. airFiber was purpose-built to create a high performance backhaul.

Specifications

* Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08")
* Weight 16 kg (35.27 lb) Mount Included
* Max. Power Consumption 40 W
* Power Supply 50V, 1.2A PoE GigE Adapter (Included)
* Power Method Passive Power over Ethernet
* Supported Voltage Range 42-58VDC
* Certifications CE, FCC, IC
* Mounting Pole Mount Kit (Included)
* Wind Loading 863 N @ 200 km/hr (194 lbf @ 125 mph)
* Wind Survivability 200 km/hr (125 mph)
* Operating Temperature -40 to 55° C (-40 to 131°F)
* LEDs (12) Status LEDs:

Data Port Link/Activity
Data Port Speed
Management Port Link/Activity
Management Port Speed
GPS Synchronization
Master/Slave
Link Status
Modulation Mode 0.25x to 4x, 6x, 8x, 10x (Unlabeled), Overload
Remote and Local Displays (Calibrated Signal Strength)

Operating Frequency

FCC 15.247, IC RSS-210  -  5725 - 5850 MHz
ETSI EN 302 502  -  5725 - 5875 MHz
Other Regions  -  5725 - 6200 MHz
