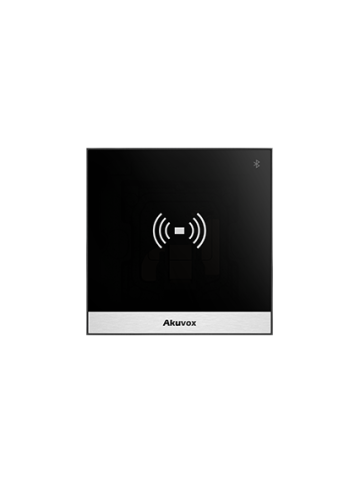

Akuvox A03 Access Control Terminal Bluetooth + RFID

Perfect Choice for Access Control

Akuvox's A03S is a safe and convenient commercial-grade device for access control. It offers you a BLE feature that enables you to open door via credential on your smartphone. And it can be easily connected to a PoE using an Ethernet cable for data transmission. A03S provides you with greater security and flexibility than those traditional access control system.

At a Glace:

• Aluminum alloy with toughened glass front

• Linux operation system

• Multi-way access feature including: RFID cards, NFC and BLE

• 20.000 card capacity & 100.000 Event Log

• Flush-mounted & Wall-mounted

• IP65 & IK07 for outdoor usage

• Compatible with Akuvox cloud & ACMS

Specifications:

• Front Panel: Toughened Glass

• Frame: Aluminum Alloy

• RFID card reader: 13.56MHz & 125KHz

• BLE: Support

• Relay out: 1

• Inputs: 2

• Wiegand: Support

• Speaker: 1

• Tamper proof alarm: Support

• Ethernet port: RJ45, 10/100Mbps adaptive

• 802.3af Power-over-Ethernet

• 12V DC connector (if not using PoE)

• IP Rating: IP65

• IK Rating: IK07

• Installation: Flush-mounted or Wall-mounted

• Dimension: 86 x 86 x 33 (mm)

• Working Humidity: 10-90%, no condensing

• Working Temperature: -20C - 55C
