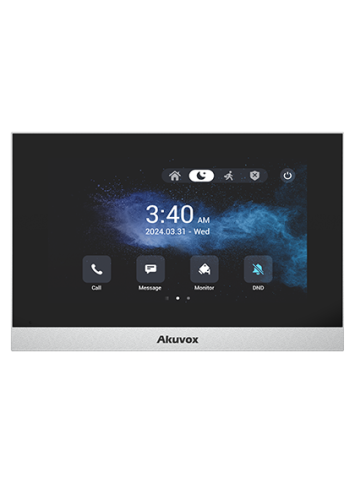

Akuvox C316W Indoor Monitor SIP 7" Android Compact WiFi / Bluetooth / PoE

Akuvox C316 is a 7-inch SIP indoor monitor powered by Android 12 OS. Designed for the mid-range multi-residential housing market, it offers a host of smart living features.

Superior Audioand Video Communication

Leveraging Akuvox's extensive expertise in SIP technology, the C316 provides crystal-clear audio and video quality, enabling users to gain a vivid understanding of visitors' identity.

Smart Home Made Possible with Android 12 OS

Powered by Android 12 OS, the C316 supports the integration of third-pay apps, transforming it into a central hub for smart home management. Users can easily install apps to control lighting, climate, security and more, all from a single interface.

• Ultra-clear, stylish appearance;  Android 12 OS

• 7-inch capacitive touch screen with energy saving mode

• Two-way audio communication with other units in the network

• Complies with SIP standard for easy integration in every SIP capable PBXes

• Powered by PoE or external source

• Support US or European electrical wall box

Specifications:

• Front panel: Plastic

• OS：Android 12

• RAM / ROM: 2GB / 8GB

• Display: 7 Inch TFT LCD

• Screen: 7 Inch capacitive touch screen

• Wi-Fi: IEEE802.11 b/g/n @2.4GHz

• Bluetooth: Bluetooth 4.2

• RS485 port: Support  Relay out: 1

• Bell in: 1

• I/O: 8

• Microphone: -58dB

• Speaker: 4Ω / 2W

• Ethernet ports: 2xRJ45, 10/100Mbps adaptive

• 802.3af Power-over-Ethernet  12V DC connector (if not using PoE)  Installation: Wall-mounted & Desktop

• Dimension: 200.2x132.2x27.2mm

• Working Humidity: 10~90%

• Working Temperature: -10°C ~ +45°C

• Storage Temperature: -20°C ~ +70

Specification

At a Glance

• Ultra-clear, stylish appearance

• Thin profile and small footprint

• 7-inch capacitive touch screen with energy saving mode

• Two-way audio communication with other units in the network

• Complies with SIP standard for easy integration in every SIP capable PBXes

• Powered by PoE or external source

• Support US or European electrical wall box mounting

Touch Screen Display

• Display Mode: Normally white, Transmissive

• LCD Size: 7inch (Diagonal)

• Resolution: 1024x600

• Contrast ratio: 800:1

• Luminance: 270 cd/m2

• Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower

• Touch Screen: Projected capacitive

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)

• Narrowband audio codec: G.711a, G.711μ, G.729

• Broadband audio codec: G.722

• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

• Echo Cancellation

• Voice Activation Detection

• Comfort Noise Generator

• Automatic Gain Control

Video

• Streaming formats: H.263 & H.264

Networking

• Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Deployment & Maintenance

• Auto-Provisioning

• Web management portal

• Web-based packet dump

• Configuration backup / restore

• Firmware upgrade

• System logs (include door access logs)

Application Scenario

• Villas

• Apartment complexes

• Home automation systems

• Modern interiors
