Alta Labs AP6 AP WiFi 6 2x2

ELEVATED DESIGN & EXPERIENCE

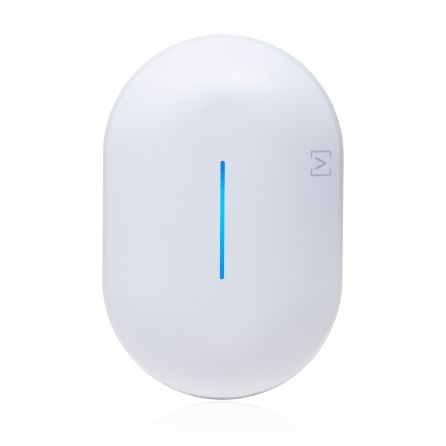

The Alta Labs AP6 Access Point features a compact form factor and a sleek aesthetic design allowing seamless integration into corporate,  commercial, and residential environments. The AP is powered over Ethernet for simple, clean installation. Versatile mounting hardware is  included featuring our proprietary QuickMount™ technology for quick, simple mounting

Superior Range and Performance
Our proprietary antenna design provides superior range and performance. Engineered by a team with extensive WiFi design expertise, the AP6  provides seamless roaming and advanced traffic management to ensure a superior WiFi experience.

High Performance WiFi 6
Built on Qualcomm's dual-band, 4-stream WiFi 6 networking platform, the AP6 delivers optimal 2.4 GHz and 5 GHz WiFi 6 performance.

On-The-Fly Changes and Scanning
Configuration changes do not require a reboot of your network. Changes can be made without taking your network down. Scan your AP environment without disrupting your WiFi network

Hotspot Functionality
Built-in functionality to create your own local hotspot with a logo, title page, terms of service, and a final landing page. You also have the option to redirect to an external URL.

Wireless Network Color Coding
Patent pending functionality that allows you to assign groups to wireless SSIDs and then assign membership to wireless access points

Features

• Superior Range and Performance

• Scalable Cloud-Based Management

• Mobile App

• AltaPass™ Multi-Password Technology

• DPI Engine

• High Performance WiFi 6

• Hotspot Functionality

• On-The-Fly Changes and Scanning

• Wireless Network Color Coding

• SSID Broadcasting Flexibility

• Customizable Dashboard

• Status Snapshots

• Device Cards

Specifications;

• Dimensions 190 x 125 x 32 mm (7.5 x 4.9 x 1.25")

• Weight 0.4 kg (0.9 lbs)

• Enclosure Material Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum

• Mount Material Ceiling/Wall: Polycarbonate, Drop Ceiling: Steel

HARDWARE

• Network Interface Ethernet, WiFi, Bluetooth

• Management Interface (1) GbE RJ45 Port

• Button(s) Reset/Factory Reset

• LED Blue, White

• Power Method PoE+

• Power Supply PoE+ Enabled Network Switch or 48V, 0.5A PoE Adapter (Optional)

• Supported Voltage Range 42.5-57V DC

• Power Consumption 20W Max, 5 - 12W Typical @ 23° C (73° F)

• Max. Transmit Power 2.4 GHz: 23 dBm @2NSS, 5 GHz: 23 dBm @2NSS

• MIMO: 5 GHz: 2 x 2, UL MU-MIMO (in STA mode), DL/UL MU-OFDMA / 2.4 GHz: 2 x 2, DL/UL MU-OFDMA / Explicit TX beam-forming

• Throughput Rate 2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 2.4 Gbps

• Antenna Gain 2.4 GHz: Up to 4.0 dBi, 5 GHz: Up to 4.1 dBi

• Mounting Wall, ceiling, drop-ceiling, table top

• Operating Temperature -30 to 60° C (-22 to 140° F)

• Operating Humidity 5 to 95% Noncondensing

• Certifications CE, FCC, IC (Visit Alta.inc for a full list of certification
