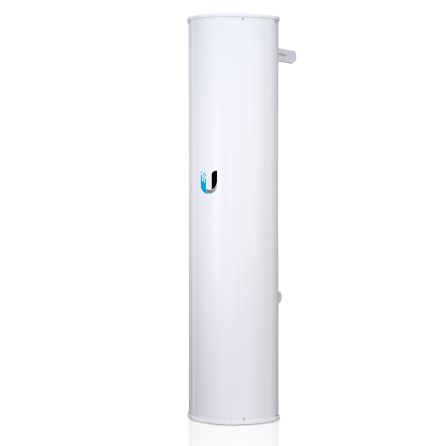

Ubiquiti AP-5AC-90-HD 5 GHz, 3x30° HD Sector Antenna

Ubiquiti Networks introduces an innovative sector antenna for your Point-to-MultiPoint (PtMP)  applications, the airPrism® 5 GHz 3x30° HD Sector Antenna.

The airPrism antenna features significant advances in noise isolation and beam performance to complement the Rocket®5ac Prism™ radios (not included) for co-location deployments.

Breakthrough Design

Three Rocket5ac Prism radios mounted on a single airPrism antenna maximizes throughput in an efficient tower footprint, minimizing installation and tower costs.

Powerful Performance

Highly resistant to noise interference, the airPrism antenna provides superior beam performance in high-density areas for high-capacity, multipoint networks.

All Ubiquiti airMAX devices are equipped with ESD protection. However, to protect outdoor devices, and to meet certain local code requirements, installing the ETH-SP is

Plug and Play Integration

The airPrism antenna and Rocket5ac Prism radios have been designed to seamlessly work together. Every airPrism antenna has three built-in Rocket radio mounts, so installation requires no special tools.
Snap the three Rocket5ac Prism radios securely into place and mount the  antenna for your PtMP link.

Beamwidth

The three Rocket5ac Prism radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its
corresponding 30° beamwidth.

Refer to the diagrams below for a visual representation of the beamwidth coverage

Channel Offset

The size of the required offset depends on the channel width.

Channel Width - Separation

10 MHz - 20 MHz
20 MHz - 30 MHz
30 MHz - 50 MHz
40 MHz - 60 MHz

Specifications

• Dimensions* 322.6 x 201.5 x 1300 mm  (12.7 x 7.93 x 51.18")
• Weight** 13.1 kg  (28.9 lb)
• Frequency Range  5.15 - 5.85 GHz
• Gain 22 dBi
• HPOL Beamwidth 3 x 30° (6 dB)
• VPOL Beamwidth 3 x 30° (6 dB)
• Electrical Beamwidth 8°
• Electrical Downtilt 2°
• Max. VSWR 1.75:1
• Polarization Dual-Linear
• Cross-Polarization Isolation 30 dB Min.
• Interfaces (6) RP-SMA Connectors (Weatherproof)
• Compatible Radio Rocket5ac Prism, model R5AC-PRISM
• Wind Loading 534 N @ 200 km/h (120 lbf @ 125 mph)
• Wind Survivability 200 km/h (125 mph)
• Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
• ETSI Specification EN 302 326 DN2
• Certifications CE, FCC, IC
