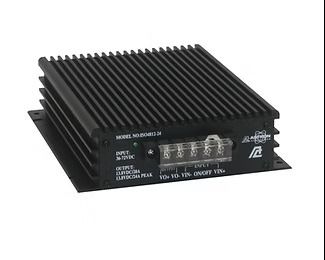

Astron N2412-24 Converter DC-DC In: 22-32VDC Out: 13.8VDC 20A

Input Voltages ranging from 22-72VDC

Output Voltage of all models: 13.8VDC

Built-in Overvoltage, Overcurrent, and short-circuit protections.

Remote ON/OFF connection terminal for use with an Ignition Switch

Up to 94% Efficiency

Minimum Efficiency (at full load):

Models A, N: 92%​

Model ISO: 90%

RoHS Compliant

LED Visual Indicators: DC-OK (Green) and Fault (Red)

Operating Temp: -25 to +55​ºC

Storage Temp: -40 to +85ºC

Overtemperature Protection at 70ºC

*ICS Intermittent Communication Service (50% Duty Cycle, 5min. On, 5min. Off)

Specifications:

• Continuous Output: 20 Amps​

• Peak Current ICS: 24 Amps.

• Size: 1.8 x 6.2 x 6.8"​

• Weight: 2.00lbs
