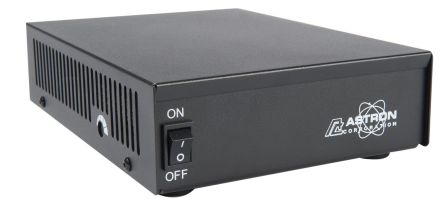

Astron SS-18 Switching Power Supplies 13.8VDC 18A Max 120 to 230 VAC 50/60Hz

Specifications:

• OUTPUT VOLTAGE: 13.8VDC

• CONTINUOUS DUTY: 15A

• ICS*: 18A

• DIMENSIONS: 2⅜ x 6 x 9"

• SHIPPING WEIGHT: 3.6lbs

• POWER TERMINALS: Terminal Block, Screw Tight

• AC CURRENT DRAW

• IDLE: 105 mA

• FULL LOAD: 2.1A

• FAN COOLED:  Yes

• Fold Back Current Limiting

• Crowbar Over Voltage Protection

• Internal Fuse Protection

• Over Temperature Shutdown

• Certified to UL/CUL/EN/IEC 62368-1 standards

• Built-in EMI filter certified to EN55022/CISPR 22 (CLASS B), FCC Part15 (CLASS B), EN55024, EN61000-3-2 (CLASS D), EN61000-3-3 (HARMONIC), IEC61000-4-2-,4,5 (EMS)

• Certified to Energy Star and CEC Enviromental standards

• RoHS Compliant (Lead Free)

• Anderson Power Poles and Dual 1.5A USB Ports on AP models only.
