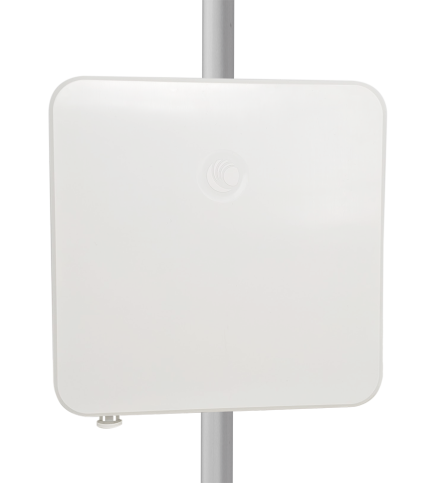

Cambium C058900C901A ePMP Force 300-19R SM 5GHz FCC

The ePMP Force 300-19R is a powerful yet affordable subscriber module compatible with the ePMP 3000 and ePMP 2000 to ease the migration into the 802.llac Wave 2 technology.

Combining the latest 802.llac Wave 2 technology and the field proven scalable performance of ePMP™, the Force 300-19R delivers up to 600 Mbps of capacity. It has a 19 dbi integrated antenna with a narrow beamwidth and reliable IP67 mechanics. This SM is excellent for areas where severe weather occurs often or in industrial, enterprise and government applications where IP67 and other security features are important. The ePMP Force 300-19R also supports 4.9 GHz in FCC jurisdictions which along with 5/10 MHz channels in PTP topology makes it a great solution for CCTV and video surveillance solutions.

Specifications:

• Channel SpacingConfigurable in 5 MHz increments

• Frequency RangeWide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)

• Channel Width5 / 10 / 20 / 40 / 80

• ARQ: Yes

• Nominal Receive Sensitivity (w/FEC) @20 MHz ChannelMCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -68 dBm (per chain)

• Nominal Receive Sensitivity (w/FEC) @40 MHz ChannelMCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -66 dBm (per chain)

• Nominal Receive Sensitivity (w/FEC) @80 MHz ChannelMCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -61 dBm (per chain)

• Modulation Levels (Adaptive)MCS0(BPSK) to MCS9 (256 QAM-5/6)

• Transmit Power Range0 to +28 dBm (combined up to the regioanl EIRP limit) (1 dB interval)
