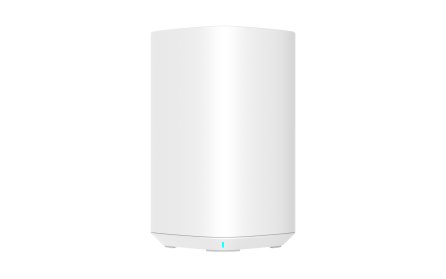

Cambium RV22USAB2-US AP Wi-Fi 6 Home Mesh Router 4 x GbE Two Pack

cnMaestro Response Center

Response Center analytics deliver useful Insights and recommended actions to reduce the time to repair and eliminate truck rolls. The intuitive cnMaestro subscriber workflow walks through the steps to set up a new subscriber and provision services. Use the same workflow tool to adjust managed broadband and Wi-Fi services

Self-Service Subscriber App

Empower your subscribers to be part of their own service delivery with the easy-to-use self-service Subscriber App. Curated data is clearly displayed on the dashboard, while useful tools are obvious and intuitive.

• Android or iOS

• Service Provider branded

• Self-service at your fingertip

• Family Time

• Web Content Filter

• Speed Test

• Optimize Wi-F

Subscriber and Service Workflows

cnMaestro subscriber workflows allow the provider to create a service and link it to a person and a site. Multiple services can be created in cnMaestro with each service including custom logos, service names, support contacts, and support hours. Use the service tool to create multiple levels of service with unique branding and information.

Assign a service to a subscriber and the subscriber site. Once linked, an invitation to manage the network will be automatically generated and sent to the subscriber email address

Automatic Mesh

Start with a single managed Wi-Fi 6 RV22 Home Mesh Router and add mesh nodes, if needed, to cover large homes, difficult construction types, and/or RF blocking construction materials, such as brick or concrete. cnMaestro cloud management system informs the mesh router to look for mesh nodes. Discovery and setup are automatic. A blinking LED on the mesh node guides the subscriber to the optimal site location for the mesh node—not too close and not too far from the mesh router. The result is multi-gigabit, symmetrical mesh links delivering a great experience throughout the home

Specifications:

• 802.11ax, up to 3x3:2. 20/40/80/160 MHz, 802.11a/b/g/n/ac wave 2, MU-OFDMA, MU-MIMO, TWT, MIMO, VHT MCS rates, 16/64/256/1024/4096-QAM, Transmit Beam steering, Airtime Fairness, AMSDU,AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM. IEEE 802.11d/e/h/i/k/r/u/v/w

• FCC: Ch 1–11, 36–64, 100–144, 149–165

• ISED: Ch 1–11, 36–64, 100–116, 149–165

• ETSI: Ch 1–13, 36–64, 100–140, 149-165

• ROW*: Ch 1–14, 36–64, 100–144, 149–173

• *Individual country limits may apply

• Radios 5 GHz: 802.11a/n/ac/ax, 3x3:2 / 2.4 GHz: 802.11 b/g/n/ax, 2x2:2

• MAX PHY Rate: 5 GHz radio: 2.4 Gbps / 2.4 GHz radio: 600 Mbps

• Antenna Type: Internal, vertically polarized

• Antenna Gain: 5 GHz: up to 5 dBi / 2.4 GHz: up to 5 dBi

• Conducted Tx Power: 5 GHz 3x3:2 radio: 25.7 dBm / 2.4 GHz 2x2:2 radio: 24 dBm

• Ports 4 x IEEE 10/100/1000 Mbps Ethernet

• Power: 12VDC, 1.2A DC power jack / 2.5mm x 5.5mm CP

• Certifications: FCC,CE, AU, NZ,U
