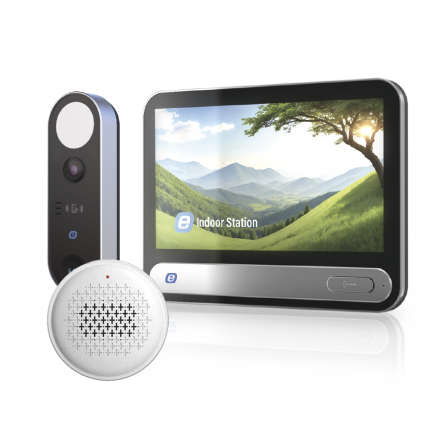

Epcom ACVPM26WGEN3/KC Intercom Doorbell / Touch Screen / Chime Wi-Fi

DOORBELL

Specifications:

• Maximum Resolution: 2MP (2592 x 1520).

• Lens: 2.3 mm (139°).

• Functions: 2D/3D NR / WDR (120dB) / HLC / BLC / defog / ROI.

• IR distance: 0.3 - 3m.

• Compression supported: H.265+ / H.265 / H.264+ / H.264

• Supports P2P

• IP65

• NDAA Certificate

Physical and Electrical Features:

• Power: 12Vdc / 0.5A - PoE.

• Electrical Consumption: < 6W.

• Operating temperature: -20 ~ 50 °C (-4 ~ 122 °F).

• Dimensions: 5.9" x 5.9" x 1.1" (150 x 50 x 29.8 mm)

• Weight: Approx. 0.60Kg (1.3 Lbs)

General Features:

• RJ45 interface.

• Storage: Micro SD up to 256 GB.

• Audio: 1CH Integrated MIC, 1CH integrated speaker.

• Smart Events.

• Supports ONVIF.

• Supports MIFARE cards (13.56Mhz) up to 3000.

• Supports 2.4GHz WiFi.

• Supports up to 6 monitors (1 main and 5 slaves)

• Supports up to 10 dorbells (1 main and 9 slaves)

SCREEN

Specifications:

• Resolution: 1024 x 600

• Supports 16 IP cameras (IP cameras connected to the same network as the monitor, NVR and DVR are not supported)

• Maximum playback of 4 simultaneous cameras.

• Supports 5 monitors as an extension

• Supports call between monitors.

• Compatible intercom: ACVP2W-GEN3

• NDAA Certificate

Physical and Electrical Features:

• Power: 12Vdc / PoE.

• Electrical Consumption: < 6W.

• Operating temperature: -20 ~ 50 °C (-4 ~ 122 °F).

• Dimensions: 7" x 5.3" x 1" (180.6 x 135.6 x 26.8 mm)

• Weight: Approx. 0.36Kg (Approx. 1 Lb)

General Features:

• RJ45 interface.

• Storage: Micro SD up to 256 GB.

• Audio: 1CH Integrated MIC, 1CH integrated speaker, supports noise suppression and cancellation.

• Supports 2.4Ghz WiFi.

• 8 alarm inputs

• Wall installation

• Inter-monitor calls are not supported.

CHIME

Specifications:

• Classic Tones

• Easy to install

• Adjustable volume and ring tone

• Low battery reminder

• Physical and Electrical Features:

• Power: Two 1.5V AA Alkaline dry batteries (not included)

• Operating temperature: -20 ~ 50 °C (-4 ~ 122 °F).

• Dimensions: 2.8" x 1.2" (73 x 32 mm)

• Weight: Approx. 0.60Kg (1.3 Lbs)

General Features:

• Wall mounting, desktop

• Built-In Speaker

• Pairing setting and ring tone selection with button

• Volume button

• Transmission distance: Up to 328ft (100m) under an open environment without interference.

• Wireless networks, walls, ceilings, can decrease the distance.

Warranty: 5 years
