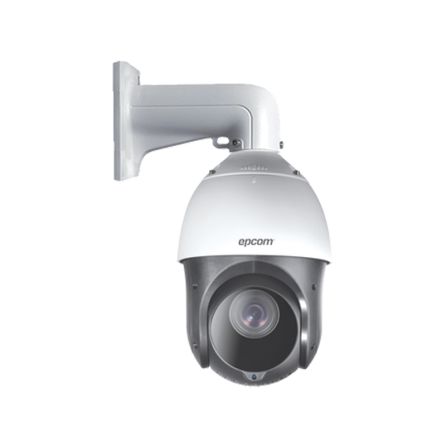

Epcom DX360-25X Camera Dome PTZ 2MP (1080p) 25x Zoom IR 328ft IP66 RS-485

Main Features:

• Resolution: 2 Megapixels (1920 x 1080).

• Minumum Ilumination: Color 0.005 Lux (F1.6, AGC ON).

• Minumum Ilumination: B/N 0.001 Lux (F1.6, AGC ON).

• Functions: WDR 120dB / 3D-DNR / BLC / HLC / EIS.

• Focal Length: 4.8 a 120 mm (25X Optical Zoom / 16X Digital Zoom).

• IR Distance: 100 mts IR ( visión nocturna).

• Support 4 technologies (TVI / AHD / CVI / CVBS).

• Support RS-485 conection (analog) and COAXITRON conection (TurboHD).

Physical and Electrical Characteristics:

• Power Supply: 12 VDC / 20 Watts.

• Operating Temperature: -22° F to 149° F.

• Protection: Indoor / Outdoor (IP66).

• Dimensions: 6.47 x 11.61".

• Warranty: 2 years

• PTZ includes wall mounting and power supply (12 VDC).

• It is recommended to place the DS-1601ZJ-CP coupling to isolate the PTZ from the wall mounting and prevent failure.

General Features:

• Pan: 360º.

• Tilt: -15º a 90º.

• Preset: 256.

• Patrol: 10 (32 Preset per patrol)

• Pattern: 5 (with the total recording time no less than 10 minutes).

• Support schedule task.

• Protocols: HIKVISION / Pelco-P / Pelco-D.
