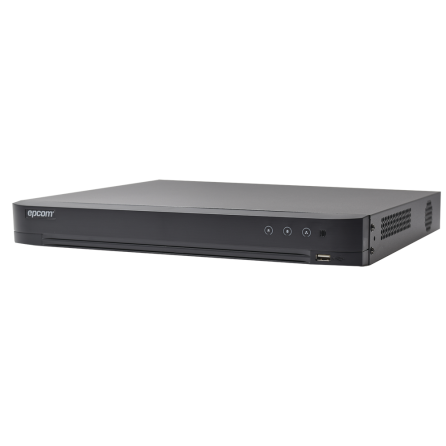

Epcom EV-4008TURBO-D(C) DVR 8 Channels 5MP TurboHD + 4 Channels IP Audio

The DVR also supports 4 video channels with activation of human body detection or vehicle detection, this allows us to be more precise when having a recording to be able to download any other type of movements

It is necessary to consider which of the analytics will be used since it is not possible to use both at the same time. When using the facial detection analytic it is not possible to activate the human body detection or vehicle detection or vice versa, when activating the human body detection or vehicle detection it is not possible to use the face detection analytic.

Specifications:

• Series Turbo HD Version 5.0

• It allows to turn off the analog channels (TURBOHD) and to be able to place IP cameras on all channels, its possible to place up to 12 IP cameras in total. For each TURBOHD analog channel that is turned off, an additional IP channel is generated.

• The DVR support five technologies: HD-TVI / HD-CVI / Analog (CVBS) / AHD / IP.

• Remote access: PC (WINDOWS / MAC), Smart Phone (iPhone, iPad, Android).

• Compatible with Internet Explorer.

• Software client multi-site of up to 64 channels (iVMS-4200).

• Compatible with Hik-Connect P2P.

• Supports service DDNS Hik-Connect Domain / DynDNS.

• Advanced functions: Line-cross detection and intruder detection.

• Audio: 1 input and 1 output.

• Supports 1 HDD of up to 10 TB (not included).

• Serial interface: RS-485 (HIKVISION C, COAXITRON, PELCO D, PELCO P, etc).

Compression and resolution:

• Compression: H.265+ / H.265 / H.264+ / H.264.

• Supports 8 channels TURBOHD / analog + 4 channels IP = 12 channels in total.

• Supports 5 Technologies (TVI / AHD / CVI / CVBS / IP)

           5 Megapixel Lite@ 15 IPS

           3K Lite@ 15 IPS

           4 Megapixel Lite@ 15 IPS

           3 Megapixel @ 15 IPS

           2 Megapixel @ 30 IPS

           1 Megapixel @ 30 IPS

           Analog 1200TVL (CVBS) @ 30 IPS

           IP up to 6 Megapixel

           Note: Accepts cameras of 4MP, 2MP, and 1MP in all BNC channels (3MP cameras only in channels 1 and 2).

Physical and Electrical Characteristics:

• Power supply: 12 Vdc (includes source).

• Consumption with HDD: 18 watts.

• Operating temperature: -10 ºC up to 55 ºC.

• Dimensions: 315 x 242 x 45 mm (W × D × H)

• Weight: 1.78 Kg without HDD.

Warranty: 5 Years.

HARD DISK IS NOT INCLUDED!
