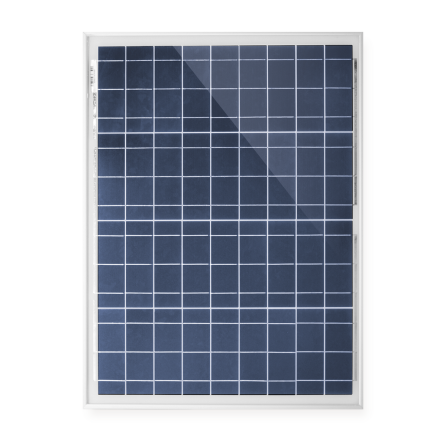

Epcom Powerline PRO5012 Polycrystalline Photovoltaic Module 50 W 12 Vdc

High-Quality Cells

EVA encapsulated in transparent and tempered glass of 4 mm. The back of the module is protected with a sheet of TEDLAR resistant to UV rays. The laminates are mounted on an anodized aluminum frame, ensuring maximum protection.

Applications:

• Radio repeater stations.
• Electrification in rural areas.
• Emergency communication systems.
• Feeding medical teams in rural areas.
• Water pumping systems.
• Obstruction lights for air traffic.
• Cathodic protection systems.
• Signs of railways.

Electrical Data (STC)

Peak Power (Wp)                                              50 W

Maximum Power Voltage (Vmp)                      18 V

Maximum Power Current (Imp)                        2.77 A

Open Circuit Voltage (Voc)                               22.2 V

Short Circuit Current (Isc)                                 3.96 A

Maximum System Voltage                                600 V

Warranty

4-year warranty against manufacturing defects and 40 years of life.
