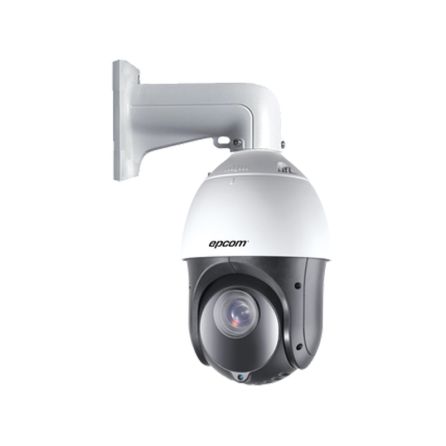

Epcom XPTIE252X Camera IP PTZ 2MP (1080p) 25x Optical Zoom IR 328ft PoE+

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS

• Effective Pixels: 1920(H)x1080(V)

• Signal System: PAL/NTSC

• Minimum Illumination:

• ​Color: 0.005 Lux @(F1.6, AGC ON)

• B/W: 0.001 Lux @(F1.6, AGC ON)

• 0 Lux with IR

• White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

• AGC: Auto/Manual

• BLC: ON/OFF

• HLC: Support

• Smart defog: Support

• WDR: 120dB

• Shutter Time: 1/1 s to 1/30,000 s

• Day& Night: ICR

• Digital Zoom: 16×

• Privacy Masking: 24 privacy masks programmable

• Auto Focus: Auto / Semi-automatic / Manual

Lens

• Focal Length: 0.18 to 4.72" (4.8 to 120 mm), 25× optical

• Zoom Speed: Approx. 3.2 s (optical lens, wide-tele)

• View Angle:

• ​Horizontal field of view: 57.6° to 2.5° (wide-tele)

• Vertical field of view: 34.4° to 1.4° (wide-tele)

• Diagonal field of view: 64.5° to 2.9° (wide-tele)

• Minimum Working Distance: 0.39 to 59.05" (10 mm to 1500 mm) (wide-tele)

• Aperture Range: F1.6 to F3.5

Pan & Tilt

• Pan Range: 360° continuous

• Pan Speed: Configurable, from 0.1°/s to 80°/s

• Preset Speed: 80°/s

• Tilt Range: -15°-90° (Auto Flip )

• Tilt Speed: Configurable, from 0.1°/s to 80°/s

• Preset Speed: 80°/s

• Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples

• Number of Preset: 300

• Patrol: 8 patrols, up to 32 presets for each patrol

• Pattern: 4 pattern scans, record time over 10 minutes for each scan

• Power loss recovery: Support

• Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

• PTZ Position Display: ON/OFF

Infrared

• IR irradiation distance: 328 ft (100 m)

• IR irradiation angle: Adjustable by zoom

Network

• Ethernet: 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional)

• Max.Image Resolution: 1920×1080

• Main Stream: 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)

• Sub Stream: 60Hz: 30fps(704×480, 640x480,352×240)

• Third Stream: 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)

• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG

• ROI encoding: Support 4 areas with adjustable levels

• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

• No. of Simultaneous Users: Up to 20 users

• Three-Stream: Support

• Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

• User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, and User

• Security Measures: User Authentication (User ID and Password), Host authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

• Guarding Vision: Support

General

• Menu Language: English

• Power Supply: 12 VDC &POE (802.3at,class4)

• Power Consumption: Max.:18 W (IR Max.6 W)

• Working Temperature/Humidity: -30°C to 65°C (-22°F to 149°F)

• Protection Level:

• ​IP66 standard (outdoor dome)

• TVS 4,000V lightning protection, surge protection, and voltage transient protection

• Dimensions: Φ 165.9 mm × 290 mm (Φ 6.53" × 11.42")

• Weight (approx.): Approx. 2 kg (4.41 lb)

• Bracket included

1 Year Warranty
