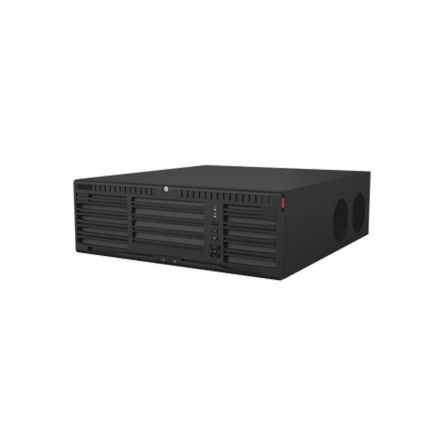

Epcom XR-664M/H16 NVR 64 Channels 32MP (8K) SENSEPLUS 2Network Cards

Main features:

• Video compression: H.265+ / H.265 / H.264+ / H.264.

• Supports USB mouse to operate (included).

• Supports 16 HDD's up to 14 TB. (not included).

• Supports HOT SWAP with RAID 0,1,5,6,10 array.

• Supports phonebook search locally or remotely.

• Support ANR technology with HIKVISION IP camera when the network is disconnected.

• Supports Hot Spare so you never lose recording in case the NVR fails (another NVR is required that also supports the function).

• Supports DDNS (Hik-Connect, DynDNS, etc).

• Supports Hik-Connect P2P (Hik-Connect).

• IVMS-4200 client software (free).

• Supports multiple brands using the ONVIF protocol

Physical and Electrical Characteristics:

• Dimensions: 445 × 496 × 150mm (3U chassis).

• Power supply: 100 to 240Vac / 50 W.

• Operating temperature: -10°C to 55°C.

• Weight: 12.5 Kg without HDD.

Recording Resolution per Channel (recommended with H.265):

• 1080P: 64 Channels @ 30 IPS.

• 5 MP: 64 Channels @ 30 IPS.

• 4K (8MP): 64 Channels @ 15 IPS.

• Synchronous reproduction in channels: 16 Channels.

Processing capacity and network functions:

• Input throughput: 400 Mbps.

• Throughput output: 400 Mbps..

• 2 x 10 / 100 / 1000 Mbps network port. (LAN)

• Network card functions: load balancing and multi-direction.

• Local and remote configuration of parameters.

• Download and playback over the network of the files recorded on the NVR.

• Supports downloading alarm log from NVR remotely.

Recording and Viewing Features:

• Multi-zone motion detection.

• Digital zoom in viewing and recording.

• Dual stream (main stream and sub stream).

• Supports fast forward, slow forward, frame by frame, etc.

• Supports S.M.A.R.T. hard drive technology.

• Supports multiple types of recording, including real time, manual recording, motion detection, motion detection and alarm, motion detection or alarm.

• Supports cyclic (overwrite) and non-cyclic recording.

Input / Output Interfaces:

• HDMI 1 output: 8K/4K/1080p/720p.

• HDMI 2 output: 4k/1080p/720p.

• VGA Out 1: 1080p/720p.

• VGA output 2: 1080p / 720p.

• Independent HDMI 1 and HDMI 2 output.

• Independent VGA 1 and VGA 2 output.

• Audio Input: 1 Channel.

• Audio Output: 2 Channels.

• Alarm input: 16

• Alarm output: 9

• Supports bidirectional audio (two-way audio).

Warranty: 5 years.
