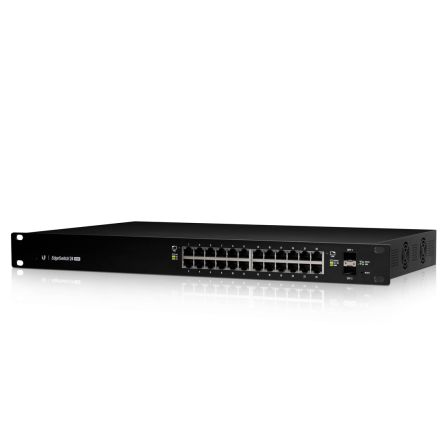

Ubiquiti ES-24-250W Managed PoE+ Gigabit Switch with SFP
Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch® delivers robust performance, PoE+ support and intelligent switching for growing networks.
Powerful Enterprise Switch Models
Enterprise-Class Features
Optical Fiber Backhaul
Convenient PoE+ Support
The EdgeSwitch® features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Breakthrough Value
Advanced UI
EdgeSwitch 24 (250W Model)
Model: ES‐24‐250W
• (24) Gigabit RJ45 Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 26 Gbps
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Maximum Power Consumption: 250W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable
Specifications
• Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
• Weight ES‐24‐250W 4.7 kg (10.4 lb)
• Total Non-Blocking Throughput 26 Gbps
• Switching Capacity 52 Gbps
• Forwarding Rate 38.69 Mpps
• Max. Power Consumption ES‐24‐250W
• Power Method 100‐240VAC/50‐60 Hz, Universal Input
• Power Supply ES‐24‐250W AC/DC, Internal, 250W DC
• LEDs Per Port
• Serial Console Port N/A
• RJ45 Data Ports PoE, Speed/Link/Activity
• SFP Data Ports Speed/Link/Activity
• Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
• Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
• Certi cations CE, FCC, IC
• Rackmount Yes, 1U High
• ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
• Operating Temperature ‐5 to 40° C (23 to 104° F)
• Operating Humidity 5 to 95% Noncondensing
• Shock and Vibration ETSI300‐019‐1.4 Standard
