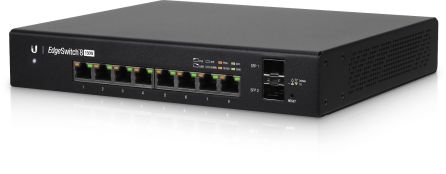

Ubiquiti ES-8-150W Managed PoE+ Gigabit Switch with SFP

Gigabit switch with (8) RJ45 ports, (2) SFP ports, and a 150W power supply.

Specifications:

Mechanical

• Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")

• Weight Without Wall Mount: 1.72 kg (3.79 lb)

• With Wall Mount: 1.8 kg (3.96 lb)

Hardware

• Networking Interface (8) 10/100/1000 Mbps RJ45 Ports

• (2) 1 Gbps SFP Ports

• Management Interface Ethernet In-Band, UART Console Out-of-Band

• PoE Interface          (8) PoE/PoE+ 2-Pair (+1, 2; -3, 6)

 (8) 24V/0.7A 2-Pair (+4, 5; -7, 8)

• Total Non-Blocking Line Rate 10 Gbps

• Max. Power Consumption 20W (Excludes PoE Output)

Power Method

• AC: AC/DC Integrated PSU, Universal Input

• DC: DC External, (Self-Correcting Polarity Protection) Terminal Block Input

• Power Supply Internal AC/DC 150W

• Operating Voltage

• AC 100 to 240VAC, 50-60 Hz

• DC42 to 56VDC

LEDs

• System Status

• RJ45 Data Ports: PoE; Link/Speed/Activity

• SFP Data Ports: Link/Speed/Activity

• ESD/EMP Protection ± 24kV Air, ± 24kV Contact

Operating Temperature

• Internal AC/DC at 150W: -25 to 45° C (-13 to 113° F)

• Internal AC/DC at 100W: -25 to 55° C (-13 to 131° F)

• External DC: -25 to 60° C (-13 to 140° F)

• Operating Humidity 5 to 95% Noncondensing

Certifications CE, FCC, IC
