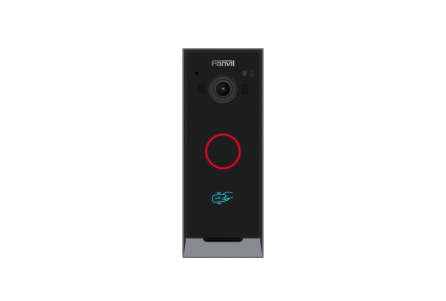

Fanvil i60 IP Intercom Video Door Phone 2MP IP65

The i60 is a compact SIP door phone with a speed dial button and an IP65 rating for indoor and outdoor use. It supports various door-opening methods such as password, Bluetooth, IC/ID card, and DTMF Code for streamlined access management and is equipped with a 2 mega-pixel camera for audio and video communication. Compatible with SIP and ONVIF, it integrates with security systems and is ideal for villas, apartments, and communities.

• 1 speed dial button

• IP65 high protection rating with wide temperature rate from

• -40℃ to 70℃, suitable for harsh outdoor environments

• Rich interfaces for security device connectivity

• Supports the standard ONVIF protocol, providing high flexibility

• and excellent compatibility

Specifications:

• Panel Type: Multi-apartment, Community, Villa

• Keyboard: 1 Speed-dial Button

• Body: ABS+PC

• Colors Panel: black, Housing: Gunmetal

• Sensor: 1/2.9-inch，CMOS

• Camera: 2 Mpx, Support infrared

• Viewing Angle: 140°(FOV) 100°(Horizontal) 57°(Vertical)

• Output video: H.264 (Baseline, Main Profile)

• Light Sensitivity: 0.1Lux

• (Infrared/White light fill light)

• Card Storage: 1,0000

• Power Consumption: PoE:1.63~6.93W / Adapter: 1.51~6.16W

• Power Supply: DC 12V / 1A / PoE 802.3af Class 3

• Working Temperature: -40℃~+70℃

• Storage temperature: -40℃~+70℃

• Size of the Panel: (LWH) 50*130*30mm

• IP / IK Level: IP65

• Installation: Wall-mounted / Rain cover

• Supported Protocols: SIP 2.0 over UDP/TCP/TLS

• Lock Opening: IC Card，By DTMF Code，Remote Door Opening, BLE

• Interface: Wiegand Input/Output / Short Circuit Input/Output

• Supported Wiegand: 26, 34 bit

• Supported ONVIF: Types Profile S

• Supported Standards: DTMF, IC Card, Indoor Switch, BLE / Cards 13.56 MHz

• Talking Mode: Full duplex (High-definition Audio)

• Additionally: Built-in relay，Motion detection，Tamper Alarm，TF Card，Open API
