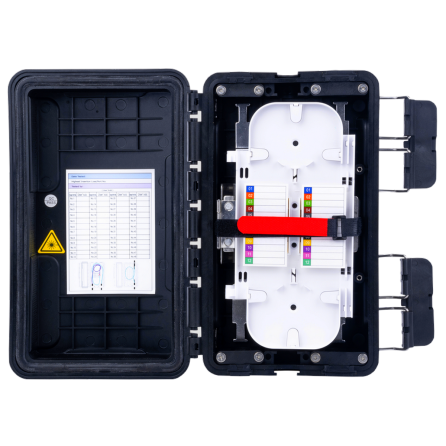

FiberHome FDP-420F Fiber Distribution Box 96 Splices IP65 Black Color

FDP420F is a subscriber optical fiber access box that is used to build at the first layer in the FTTH networks. It is designed for in-line application to provide a protected access point between the feeder cable the distribution cable. This product can keep internal components away from outdoor environmental damage. Its flexible configuration supports 2 cable in and 2 cable out. 900um pigtail type optical splitter could be built-in and provide mid-span function. IP65 performance is useful in harsh environment. The FDP420F series are suitable for the application on LCP in the distributed split PON architecture​.

Features

• In-line application and easy to installation

• Outdoor application and good UV resistant

• Numerous splice applications as mid-span, branch or direct splice

• Support micro-splitter with splicing type

• High strength material with good weather fastness(PP+GF), fame retardant

• Support ADSS cable and self-support fiber cable

• Protection grade: IP65

• Dimensions (mm): 175.5 x 285 x 92

• 2 Big cable entrance ports (Ø8mm～Ø20mm)

• 2 Small cable entrance ports (Ø5mm～Ø16mm)

• Compatible with ADSS, Mini ADSS and Mini Figure 8* fiber

*It is recommended to add more sealing mud in the cable entrance port when used with Mini Figure 8 fiber (OC-FIG8-06C, OC-FIG8-12C)

Includes:

• 1 Protection tube for naked fiber (4 m)

• 1 PVC tape

• 1 Spiral hose (2 m)

• 32 Cable tie (3*120 mm)

• 96 Heat shrinkable protection sleeve (60 mm)

• 1 Cleaning paper towels

• 1 Instruction Manual

• 2 Small Hose clamps (Ø10 - Ø16 mm)

• 2 Big Hose clamps (Ø16 - Ø25 mm)

• 1 Set of Hanging Cable pendant

• 1 Set of Hanging Line pendant

• 4 Waterproof mortar
