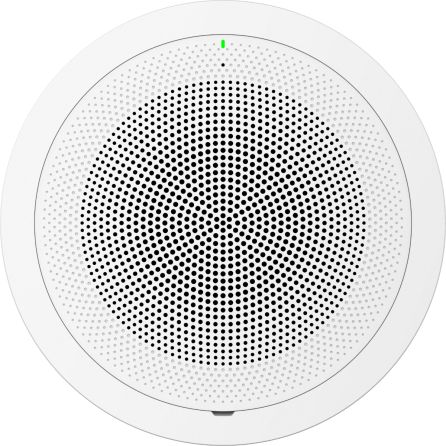

Grandstrem GSC3506-V2 SIP Intercom Multicast Paging Speaker 30W HD PoE/ PoE+

The GSC3506 V2 is a multicast paging speaker that provides a powerful paging and public address solution to expand security and communication throughout offices, schools, hospitals, apartments, and more. This high-performance SIP speaker offers crystal clear HD audio thanks to a high-fidelity 30-watt HD speaker.
The GSC3506 V2 supports SIP and multicast paging, group paging, push-to-talk (PTT), and offers built-in blocklists and allowlists to easily block unwanted calls. Thanks to a sleek design, powerful HD speaker, flexible integrations, and advanced features, the GSC3506 V2 allows users to create a state-of-the-art security and paging solution for any setting.

Specifications:

• Network Interfaces: One 10/100 Mbps port with integrated PoE/PoE+

• Auxiliary Port: One 2-pin switch-in input port, one Alarm-in input port, vol+/- Key, reset, one network port USB Port USB2.0, External USB Storage

• Voice Codecs and Capabilities: G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.723, G.729A/B, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, PLC, AJB, AGC, ANS

• Telephony Features: SIP Paging, Multicast Paging, Group Paging, PTT, call-waiting with priority override

• HD Audio: Yes, HD speaker with support for full-band audio

• Speaker: 30W high-fidelity HD speaker(coaxial)

                   Frequency: 110Hz-20000 Hz

                   Sensitivity: Up to 95 dBA at 1W power at 1 meter

• QoS: Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

• Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control,secure boot

• Multi-language: English, German, French, Spanish, Portuguese, Russian & Chinese

• Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file

• Power & Green Energy: Efficiency Integrated PoE* 802.3af Class 3, PoE+ 802.3at Class 4

• Temperature and Humidity:  Operation: 0°C to 45°C Storage: -10°C to 60°C,  Humidity: 10% to 90% Non-condensing

• Package Content: GSC3506 V2, Mounting hole cut-Out template, Ceiling mount kit(optional), Quick installation guide

• Physical Unit Dimensions: 257.5mm (diameter) x 118mm (depth)

• Unit Weight: 2.09kg , Box Weight: 2.76kg

• Compliance: FCC: FCC 47 CFR Part 15 Subpart B, IC: ICES-003, CE: EN 55032:EN 55035; EN IEC 61000-3-2: EN 61000-3-3; EN IEC 62368-1., UKCA: BS EN 55032;BS EN 55035;BS EN IEC 61000-3-2;BS EN 61000-3 3;BS EN IEC, 62368-1., RCM: AS/NZS CISPR 32:AS/NZS 62368.1
