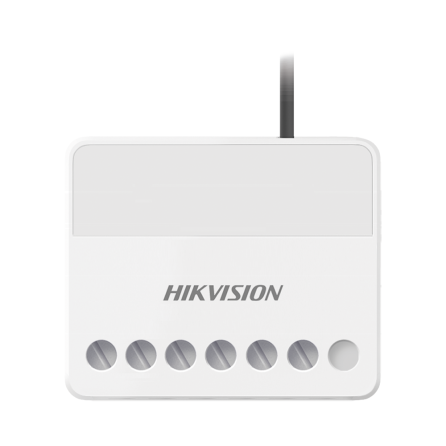

Hikvision DS-PM1-O1L-WB Relay Module 433MHz Two-Way Wireless Communication

Specifications:

Software features

• Scenario setting : By Alarm, By Operation, By Fault, By Schedule, By Manual

• Learning button: 1, For register

Hardware features

• Serial port: 1, for debug

Electrical characteristics

• Power supply: DC 7V – 24V

• Operation humidity: 10％~90％

• Operation temperature: ﹣10℃~+55℃

Wireless transmission

• RF frequency: 433MHz

• RF method: Two way communication

• RF modulation: 2GFSK

• RF distance: 800m

• Wireless security: AES-128

Display

• LEDs status: 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)

General

• Installation method: Wall Mounting

• Dimension(WxHxD): 38x25x18mm

• Shell material: Plastic

• Color: White

• Weight: 28.5g

Device management

• Alarm input: 1 for tamper, NO/NC

• Relay output: 1, NO/NC (0~36V DC, Max 5A）
