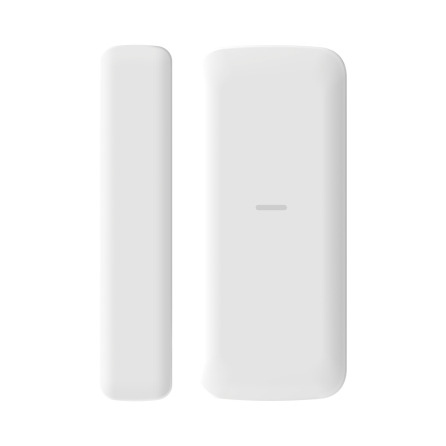

Hikvision DS-PDMCS-EG2-WB Wireless Slim Magnet Detector

• Slim design for an unobtrusive (unnoticeable) installation

• Fully remote configurable through App

• Multiple enrollment methods and easy installation design

• Frequency hopping against jamming for reliable transmission

Specifications:

Detection Performance

• Detection Method: Opening Contact

• Detection Gap: 52mm Max

Feature

• Digital Processing: Support

• Tamper Protection: Front;Rear

• Environment Temperature Indicator: Support

• Signal Strength Indicator: Support

Interface

• Power Switch: Power Up Enrolling

• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433MHz

• Transmission Security: AES-128 Encryption

• Transmission Range(Free Space): 1Km

• Frequency Hopping: Support

• Enrolling Method: Power up;Remote ID;QR Code

Electrical Characteristics

• Standard Battery Life: 3 years in work status (being triggered 20 times per day)

• Power Supply: Battery Powered

• Battery Type: CR2450 x 1

• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)

• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)

• Operation Humidity: 10% to 90%

• Dimension(WxHxD): 29mm × 69mm × 10mm / 14mm × 69mm × 10mm

• Weight: 38g

Application Scenario

• Indoor
