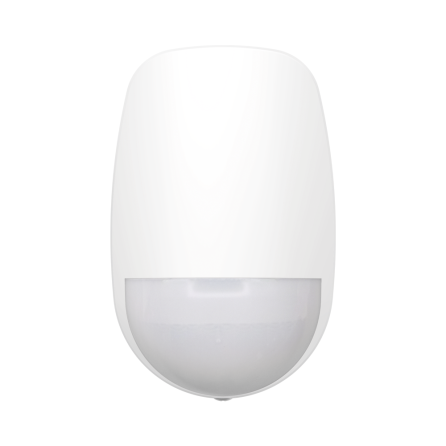

Hikvision DS-PDP15P-EG2-WB Wireless PIR Detector

• Detection Range: 15m / 85.9°

• Up to 30KG pet immunity

• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics

• Fully remote configurable through App

• Multiple enrollment method and easy installation design

• Easy replaceable battery with PCB protected

• Frequency hopping against jamming for reliable transmission

Specifications:

Detection Performance

• Detection Method: Passive Infrared

• Detection Range: 15m

• Detection Angle: 85.9°

• Detection Zones: 52

• Detectable Speed: 0.3～2m/s

• Sensitivity: High;Auto;Pet

• Pet Immunity: 30Kg

• White Light Filter: 6500lux

• Digital Temperature Compensation: Support

• Creep Zone Protection: Support

Feature

• Digital Processing: Support

• Sealed Optics: Support

• Tamper Protection: Front;Rear

• Environment Temperature Indicator: Support

• Signal Strength Indicator: Support

Interface

• Power Switch: Power Up Enrolling:

• LED Indicator: Blue(Alarm)

Transmission

• Transmission Technology: Tri-X Wireless

• Transmission Method: Two-Way RF Wireless

• Transmission Frequency: 433MHz

• Transmission Security: AES-128 Encryption

• Transmission Range(Free Space): 1.2Km

• Frequency Hopping: Support

• Enrolling Method: Power up;Remote ID;QR Code

Electrical Characteristics

• Standard Battery Life: 5 years in work status (being triggered 20 times per day)

• Power Supply: Battery Powered

• Battery Type: CR123A × 1

• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)

• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)

• Operation Humidity: 10% to 90%

• Dimension(WxHxD): 65.5mm × 103mm × 48.5mm

• Weight: 128g

• Mounting Height: 1.8 to 2.4m

• Mounting Method: Wall

• Application Scenario: Indoor

• Bracket: Optional Wall & Ceiling Accessory
