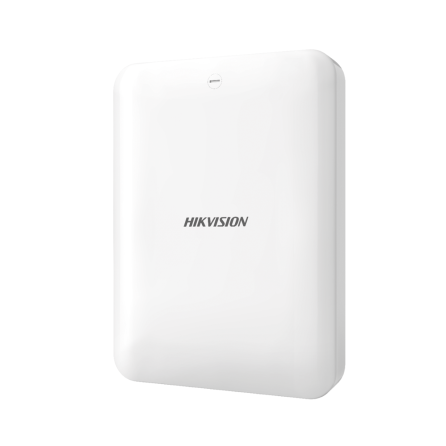

Hikvision DS-PHA64-W4P2 AX PRO Hybrid Control Panel 8 on-board zones

Are you concerned about the safety of your home and the well-being of your loved ones when you are away? Do you own an office or a business and worry that theft, robbery or other accidents might occur during your leisure time?

Well, it is time to meet AX PRO – the advanced alarm system that helps guarantee the safety of your valuables, with continuous protection and real assurance 24 hours a day. Featuring precise detection and instant visual alarm verification, the AX PRO is the first wireless intrusion alarm system for homes and businesses that integrate comprehensive intrusion detection with smart automation, video security, video intercom, access control, and more.

Wireless Alarm System

This advanced synergy of technologies is delivered in a small, compact, and discreet panel that delivers multi-configuration methods, full control and setup via Hik-Connect smart device application and iVMS as well as video verification through revolutionary Intruder Verification as a Service (IVaaS).

Where other video verification methods on the market are reliant on sending low-quality static imagery to confirm events, IVaaS links previously separate video and intruder systems to one platform, showing the operator a seven-second clip in the event of an alarm; a five-second pre-alarm clip, and a two-second post-alarm clip.

The system includes AX and AX PRO series. The new AX PRO series supports up to 210 peripherals from a wide range includes internal and external detectors, contacts, keyfobs, and life safety sensors. The extensive wireless range of intrusion devices feature award-winning, proven and patented intrusion technologies, for complete confidence and peace of mind, with easy installation using signal strength indicators and one-push-to-connect feature.

Software features

• Installer: 1

• Onboard video clips: 4

• Firmware upgrade: Web / iVMS-4200/Hik-Connect

• Admin: 1

• Phone numbers: 8 (with GPRS/3G/4G module)

• Programming tools: Web/APP/IVMS4200

• SMS notification: support (with GPRS/3G/4G module)

• User: 61

• Area: 32

• Schedule: Auto Arm/Disarm Schedule

• Configuration tools

• Web / iVMS-4200/Hik-Connect

• Manufacturer: 1

• Zones: 64，8 on-board zones, and 56 wired/wireless zones expandable

Hardware features

• 3/4G on board: 1，optional

• GPRS on board: 1，optional

• PSTN: 1，optional

• Tamper-Proof: 1, front cover tamper-proof

• Netowrk interface: 1, RJ45 10M/100M Ethernet Interface

• Bus: RS485

• Alarm output: 4 on-board outputs, and 60 wired/wireless outputs

Electrical characteristics

• Battery type: Lead-acid storage battery supported

• Power supply: 12VDC / Storage battery

• Operation humidity: 10% to 90% (No condensing)

• Operation temperature: -10℃ to 55℃ (-4 °F to +122 °F)

• Battery life span: 16h (7Ah, standby mode)

General

• Dimension(WxHxD): 310 mm (12.2") × 225 mm (8.6\") × 95 mm (3.7)"

• Shell material: Plastic case

• Color: White

• Application scenario: Indoor

Device management

• Tag: 12 (with DS-PK-LRT keypad)

• Keypad: 9

• Wireless sounder: 2

• Keyfob: 8

• Sounder output: 1 wired siren (on-board connection) 2 wireless sirens

Report method

• ARC protocol

• ISAPI: Supports client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC09: ARC accessible (CID/SIA)
