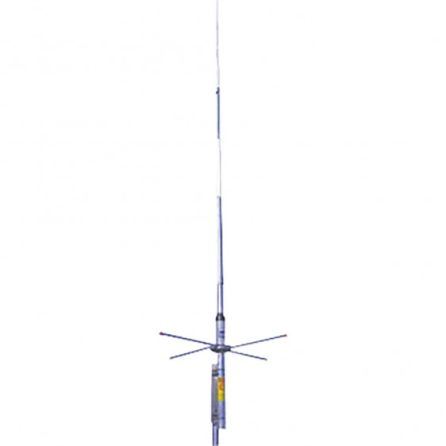

Hustler G7-150-1 148-154 MHz Antenna - 7 dBd Gain - 15 Feet 4 Inches Tall - N Female

Seven dB maximum effective gain provides more consistent pattern, even in marginal areas. Extremely  low angle stacked 5/8 wave radiators provide superior gain. Harsh  environments do not affect mechanical or signal integrity.  Constructed of high strength aluminum and fiberglass for all weather durability

Specifications:

• Radiation Pattern: Omni directional, low angle.

• Frequency range: 154-161 MHz

• Gain: 7 dB

• Bandwith: 4 MHz

• SWR: 1.2:1 at resonance

• Impedance: 50 ohms nominal

• Power: 600 Watts

• Connector: N Female

• Max lenght: 13.94 ft (4.25 m)

• Wind resistance: 100 mph (161 km/h)

• Radiation Pattern: Omni directional, low angle.

Mechanical:

• Length: 15'4"  long, 1.25" telescopic to 3/8" O.D.

• Weight: 10 lb.

• Radials: Four 20.25" x 0.375" O.D.

• Mounting: Vertical support up to 1.75 in. O.D. pipe

Includes:

Accessories for mast mounting with up to 1 1/2" diameter.
