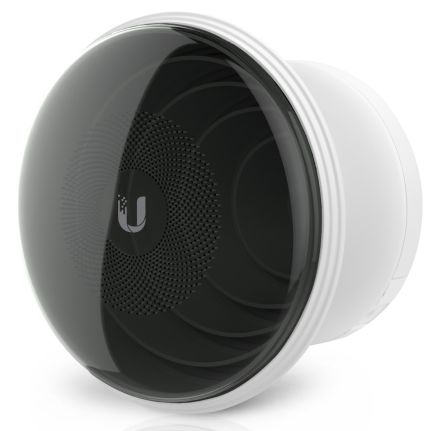

Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment) with dedicated Wi-Fi management, the IsoStationTM M5.

Improved Noise Immunity

The IsoStation M5 provides high isolation solutions in  xed beamwidth increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially  lters both in-band and out-of-band spurious.RF emissions to increase the noise immunity of the IsoStation M5.
This feature is especially important in an increasingly congested RF environment.

Modular Design

With  exible sectorization for optional antenna beamwidths, the horn antenna is interchangeable and improves beam‐shaping for speci c deployment and environment needs. The IsoStation M5 uses horn antenna sectors designed for increased co-location performance without sacri cing gain.

Providing high throughput and an innovative form factor, the IsoStation M5 is versatile and cost‐effective to deploy.

Symmetrical Antennas

Symmetrical horn antennas (30° and 45° versions) offer breakthrough scalability options for wireless systems. They are ideal for cluster sector installations with high co‐location requirements.

Unique beam performance and great co-location characteristics allow
for a higher density of sectors than traditional sector technology.

Asymmetrical Antennas

Asymmetrical horn antennas (60° and 90° versions) are designed to have attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation.

airMAX Technology Included

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime ef ciency. It provides signi cant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
• Intelligent QoS with voice/video priority for seamless streaming.
• High capacity and scalability.
• Long‐distance, carrier‐class links.

Hardware Overview

Using airMAX technology, the IsoStation M5 supports up to 100+ Mbps real
TCP/IP throughput. It also offers the following features:
• Interchangeable horn antennas for enhanced beam shaping
• Horn feed comes directly from the radio input/output so connectors are eliminated
• Single button release for ease of changing antennas
• All metal, shielded radio base
• Metal strap for quick pole-mounting

Antenna Options

The IsoStation M5 comes with a 45° isolation antenna. We offer three optional antennas (30°, 60°, 90°) with precise radiation angles for speci c beam shaping, so you can customize the IsoStation M5 for your speci c installation.

All horn antennas are optimized for co‐location. The asymmetrical versions (60° and 90°) narrow the elevation pattern to increase gain where users need it.

Specifications

Dimensions
• With Horn 174 x 174 x 150 mm (6.85 x 6.85 x 5.91")
• Without Horn 131 x 131 x 65 mm (5.16 x 5.16 x 2.56")

Weight
• With Horn725.7 g (1.6 lb)
• Without Horn408.2 g (0.9 lb)

• Max. Power Consumption 6.5W
• Power Supply 24V, 0.5A Gigabit PoE Adapter
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Gain 14 dBi
• Beamwidth 45° (Default Horn)
• Networking Interface (1) 10/100/1000 Ethernet Port
• Processor Specs MIPS 74 Kc
• Memory 64 MB DDR2
• LED (1) Power
• Mounting Pole-Mount
• Wind Loading 36 N @ 200 km/h (8.09 lbf @ 125 mph)
• Wind Survivability 200 km/h (125 mph)
• ESD/EMP Protection ± 24 kV Contact/Air
• Operating Temperature ‐40 to 70° C (‐40 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• Certi cations FCC, IC, CE
