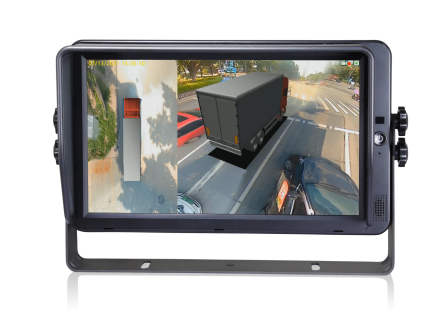

ItamTech 7 inch HD 360 Surround View Safe Driving Assistance Monitor All-in-one System Recording

360 surround view system all-in-one device integrates AVM algorithm and could achieve surround driving image without control box, no blind spot around 360°. It take only one minute for automatic calibration and supports automatic plane correction, saving time and effort. Able to work with radar, it strengthens safe security for the driving of trucks, public transports and emergency vehicles.

Why do you need 360 surround view system?

• Potential dangers hidden among blind areas.

• Possibility of scratching in narrow roads while no one shares the cost.

• Situation of racketeer for car accident keeps increasing.

• Indeterminate responsibility for rear-end collision.

• Intelligent vehicle monitoring need control box and display, with high cost time and money.

Control box is not required since monitor integrates AVM algorithm

Say goodbye to monitor+ panoramic control box and choose 360 panoramic driving all-in-one device. The monitor is directly equipped with AVM algorithm to realize 360° bird view and seamless monitoring to ensure safe driving.

HD Video with good real-time monitoring effect and low display delay

4CH 1080P fisheye camera input creates HD real driving scene, meanwhile, achieving good real-time display and low delay!

Multiple viewing models, 3D and 2D Switchable

360 surround view system,  in which user can switch 3D/2D view freely, meets the needs of all kinds of viewing modes.

• Integrated AVM Algorithm - No additional control box; Monitor integrates 360AVM algorithm for panoramic images; No blind spots around 360°

• HD Video - 1080P high definition fish eye camera input with good real-time display, offering HD and stable images

• HB IPS Screen - HB and HD IPS screen, large viewing angles

• One-minute Calibration - Automatic calibration can be finished in 1 minute, and it supports automatic plane correction, saving time and effort

• 3D/2D Switching - Multiple viewing models, 3D/2D view switching freely

• Super Rear View Mirror - 3D effect supports super rearview mirror, fully covering lane, making safer when merging in the high speed

• Built-in FCW Function - Additional camera and extra installation are not required, built-in FCW(Front Collision Warning) saving time and effort

• 360 System + MDVR - The 360° monitor can be connected to the existing MDVR, helping the MDVR achieve AI 360 + MDVR functionality

• Resource Integration - Radar access is supported, and the vehicle is fully protected

• Other Functions - Optional capacitive touch screen; trigger wire and GPS access are both supported

Specifications:

• LCD Dimension: 7 inch

• Resolution: 1024 x 3 (RGB) x 600

• Contrast: 700:1

• Brightness: 600 cd/m2

• Aspect Ratio: 16:9

• Display Model: 3D/2D views switching freely

• Video Input: Max.4CH×1080P （25FPS/30FPS） and 4CH * 720P （25FPS/30FPS）

• Power Supply: 10-32V

• Power Consumption: Max. 25W

• Loudspeaker: 1W/8Ω

• Operating Temp. & Humidity: -20~+70°C, RH 90%MAX

• Storage Temp. & humidity: -30~+80°C, RH 90%MAX
