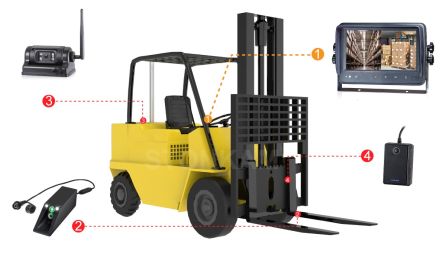

ItamTech FC-Kit-C Camera Forklift (Laser Position) / Rear Camera / Monitor 7" / Battery Pack IP69K

Forklift camera systems have become a standard aid to forklift driver operations, providing improved safety and range of vision when maneuvering and storing loads, so drivers can work safer and more efficent. ITAMTECH 1080P HD wireless forklift camera has stable signal and its transmission range of up to 120 meters. It has 62° viewing angle, will increase the visibility range, solve blind spots problems and avoid accidents, and also improve operational efficiency.

Increased efficiency

Forklift camera provides a better view during operation and solve blind spots problems so you can quickly observe the working area on the monitor, and place the forks on exact position. It makes your work time-saving and high efficient.

Increased safety

Low visibility around forklifts due to cargo obstructions leaves drivers little reference point, will cause collisions and accidents. Forklift cameras help drivers catch clear image in front of the vehicle especially in areas where human blind spots exist, avoiding accidents.

Improved comfort

The display saves driver from strenreous posture adjustment to view cargoes, racks and aisles. This can reduce muscle tension to lessen driver fatigue, improve workability and efficiency.

1080P High Definition, make your work easier and more efficient

Forklift camera with 1080P CMOS image sensor provides a clear view of the route and operation environment. The LED lights also make it clear and easy in different environment to load, unload, transport and store goods at exact position.

62° forklift view + optional camera addition, eliminate blind spots

The front view forklift view extends the driver's operational visibility, with the option to add additional wireless cameras to provide rear view to eliminate blind spots. This complete forklift camera system helps drivers avoid hitting cargoes, other material handling equipment or even people.

Laser Positioning, accurate handling

The built-in laser positioning line perfectly solves handling inaccuracy and cargo damages when the driver operates the lift. By projecting a green line, the driver can precisely control forks by the green line reference, thus can avoid damage to goods and improve operational efficiency. What's more, the laser positioning line can work as warning light when the forklift is turning around, it can remind other people to stay away from the forklift and avoid collisions.

• 1080P CMOS image sensor can help you get a clear view during forklift operation

• Stable signal , up to 120 meters wireless transmission distance

• Built-in laser positioning line helps the driver to accurately operate the fork, so as to avoid damage to the goods

• Wide enough visual range can help solve blind spots problems

• No need for wiring, time-saving and effortless.

• IP69K waterproof, dustproof,shock resistant, durable and fit for forklift to work outside

• No additional power wiring installation, can be powered by external battery.

• The glass outside the lens is relatively small, which can protect the lens well and prevent collisions with other objects such as sawdust, extending the it's lifespan.

• The camera is compact and mini in size, and can be easily installed on a slim forklift arm.

Specifications

Wireless monitor:

• LCD Dimension: 7"

• Resolution: 1024x 3 (RGB) x600

• Contrast: 700:1

• Brightness: 600cd/m²

• Viewing Angle: U:80 / D:85, R/L:85

• Aspect Ratio: 16:9

• Channel: 4 CH

• Operating Frequency: 2400MHz ~ 2483.5MHz(ISM band)

• Receiving Sensitivity: -78dBm

• Transmission Power: FCC≤26dBm / CE≤20dBm / MIC≤10dBm

• Decompression Form: H.264

• Modulation: FHSS

• Delay: 200ms

• Transmission Distance: FCC≤300 M / CE≤200 M / MIC≤60 M

• System Format: PAL / NTSC

• Power Supply: DC 10-32V

• Power Consumption: Max.10W

• Loudspeaker: 1W/8Ω

• Operating Temp. & Humidity: -20~+70ºC,RH90%MAX

• Storage Temp. & Humidity: -30~+80ºC,RH90%MAX

Camera:

• Image Device: 1/2.9" CMOS

• Effective Pixels: 1920 (H) x 1080 (V)

• Signal to Noise Ratio: 38dB

• White Balance: Auto

• BLC: Auto

• Dynamic Range: 81dB

• Operation Frequency: 2403MHz-2478MHz

• Transmission Distance (Barrier Free): 120m（Max）

• Receiving Sensitivity: -78dBm

• Video Code: H.264

• Transmission Power: FCC：≤26dBm   CE：≤20dBm   MIC：≤10dBm

• Modulation: FHSS

• Delay: 130ms

• RF Bit Rate: 12Mbps

• Operating Temp. & Humidity: –20℃ ~ 70℃, RH95%MAX.

• Storage Temp. & Humidity: –30℃ ~ 80℃, RH95%MAX.

• Minimum Illumination: 0Lux/0.1Lux

• Power Supply: DC10-32V

• Power Consumption: Day：1.8W-2.5W   Night：3.6W-4.3W

• Night Vision Distance: 3-5M

• Waterproof Rating: IP69K

• Audio: No

• Viewing Angle: 62°

• Heater: No

• IR-Cut Function: No

• Image Mode: Mirror/Normal

Rechargeable battery pack:

• Battery Capacity: 9600mAh/3.6V

• Charging Voltage: DC 5~24V

• Charging Current: 5V:2.7A MAX

• 12V:1.8A MAX: 24V:0.9A MAX

• Charging Time: 2.5H（DC 12/24V at 25℃） / 7H（DC 5V at 25℃）

• Discharging Voltage: 9.5~12.6V 1.5A MAX

• Discharging Time: 17.5H（160mA）

• Charging Temperature: -10~45℃

• Discharging Temperature: -20~60℃

• Storage Temperature: -20~60℃

• Waterproof Rating: IP69K

• Dimension: 100.5*64.5*40.7（mm）

• Weight: 400g
