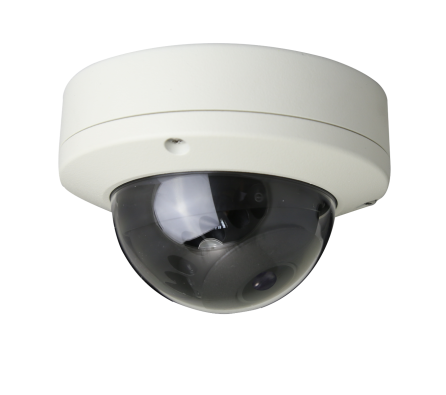

ItamTech VC-PC2 Camera Mobile Passenger Counting 2 MP (1080p) Viewing Angle 120°

The 1080P bus passenger flow counting camera has a built-in algorithm that applies deep learning technology to provide real-time recognition and motion tracking of people in the captured images, thus realizing highly accurate counting of passenger flow. It can be used alone with a monitor as a bus passenger flow counting device, or it can be accessed to MDVR to obtain real-time passenger flow data to realize intelligent vehicle scheduling, passenger flow analysis, fare evasion warning and route planning, etc., to improve the operational efficiency of public transportation. Convenient installation, low power consumption, low cost, suitable for buses, coaches, school buses, subways, trains and other vehicle scenarios demanding passenger flow statistics.

Intelligent Public Transportation Management

Equipped with vehicle-mounted DVR to obtain real-time passenger flow data, it can achieve public transportation management functions such as intelligent vehicle scheduling, intelligent passenger flow analysis, fare evasion warning and route planning.

Built-in Algorithm

The algorithm is integrated into the camera, compared with solutions in the market dealing with the algorithm in the MDVR, there is a significant improvement in detection accuracy and detection frame rate. The algorithm frame rate reaches 30 fps, the accuracy can be as high as 98%.

Alarm Output

Support alarm output, under situations like overloading, crowdedness when getting on and off, the device will send alarm to the display or MDVR, to strengthen the control of public transportation passenger flow, and help avoid accidents.

Specifications:

• Operating Temp. & Humidity: -20 ~ 70℃ RH95%MAX.

• Storage Temp. & Humidity: -30 ~ 80℃ RH95%MAX.

• Waterproof Rating: IP66K

• Image Device: 1/2.9" CMOS

• FPS: 2~30

• Effective Pixels: 1920 (H)  x 1080 (V)

• Pixel Size: 2.8 μm x 2.8 μm

• Scanning System: Progressive Scanning

• Sync. System: Internal

• Dynamic Range: 81dB

• Main Stream Resolution: D1/720P/960P/1080P

• Sub Stream Resolution: CIF/D1

• Audio Format: G.711A/G.711U

• AGC: Auto

• White Balance: Auto

• BLC: Auto

• Electronic Shutter: 1/25 (1/30)～1/50,000 Seconds

• Minimum Illumination: 0.1 Lux

• Power Supply: DC12V / IEEE 802.3af POE

• Audio: Yes

• Viewing Angle: 120°
