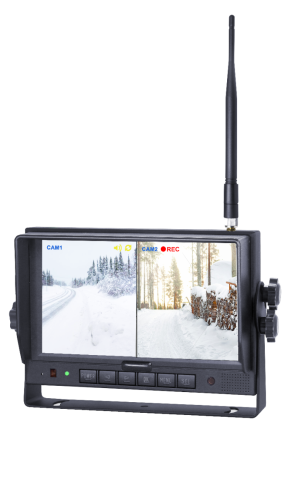

ItamTech VM-74WTR Vehicule Monitor 7-inch HD 2.4GHz Quad-view

HD Digital Wireless Vehicle Quad-view Monitor is easy to install and has built-in video recorder. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD wireless cameras to form excellent Wireless Vehicle Monitor System.

• Support 4CH wireless camera and wireless transmitter.

• A variety of monitors modes, quad view, double view and single view to meet various monitoring needs and reduce blind spots.

• With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

• Manual  and automatic pair are supported, and the setting is quick and simple. After pairing, you only need to connect the power supply in the vehicle to work.

• Supporting 1080P/720P camera input.

• The operation is more convenient, simple and quick, more durable and smoother, and the service life is prolonged.

• Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.

• Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.

• Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.

• Support power fail safeguard by super-capacitor.

• Rear view parking lines can be configured.

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

Wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

Open transmission distance up to 984ft (300m)

Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Applications

Digital Wireless Vehicle Monitor can be applied to various vehicles by easy installation without running long cables.

Specifications:

• LCD Dimension: 7"

• Resolution: 1024x 3 (RGB) x600

• Contrast: 700:1

• Brightness: 600cd/m²

• Viewing Angle: U:80 / D:85, R/L:85

• Pixel Size: 0.1506(W) x 0.1432(H)

• Aspect Ratio: 16:9

• Channel: 4 CH

• Operating Frequency: 2400MHz ~ 2483.5MHz(ISM band)

• Receiving Sensitivity: -78dBm

• Transmission power: FCC≤26dBm / CE≤20dBm / MIC≤10dBm

• Decompression Form: H.264

• Modulation: FHSS

• Delay: 200ms

• Transmitting Distance: FCC≤300 M / CE≤200 M / MIC≤60 M

• Storage: Micro SD Card, up to 128G

• System Format: PAL / NTSC

• Power Supply: DC 10-32V

• Power Consumption: Max.10W

• Loudspeaker: 1W/8Ω

• Operating Temp. & Humidity: -20~+70ºC,RH90%MAX

• Storage Temp. & Humidity: -30~+80ºC,RH90%MAX
