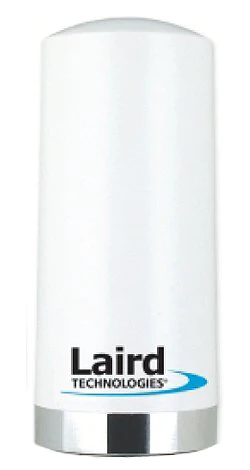

Laird TR4503 Antenna Phantom 450-470 MHz 3 dBi White NMO Connector

Laird's unique patented Phantom® is a tough antenna for outdoor or indoor applications.

Measuring only 3.4” tall, the Phantom UHF antenna’s revolutionary design features vertical polarization components. The Phantom®provides low visibility, wide bandwidth and a low  angle radiation pattern that is superior to traditional gain antennas in most applications.

The industry standard NMO mounting socket mates with all Laird magnetic, trunk lid, and hole mounts. A threaded permanent stud mount model is also available for vandal resistant mounting on brackets, panels, ceilings or any other kind of housing.

The Phantom® patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required

Specifications:

• VSWR (Measured on 2’ x 2’ GP) < 1.5:1 @ 10 MHz / < 2.0:1 @ 20 MHz

• Peak Gain 3 dBi

• Maximum Power 100 W

• Nominal Impedance 50 Ω

• Polarization Vertical

• Pattern Omnidirectional

• Half-Power Beamwidth

• (Elevation° x Azimuth°) 146° x 360°

• Coaxial Cable Length & Type None

• Terminations NMO

• Noise Suppressor BlackHawk NS1535 1-35 VOLT, 15 Amp / Noise Suppessor (Sold Separately)
