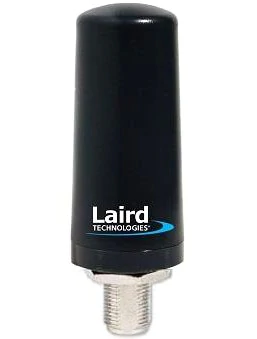

Laird TRA6927M3PB-001 Antenna Phantom 698-960 / 1700-2700 MHz. 3 dBi Black N Connector

Laird's unique Phantom antenna operates simultaneously in the 698-960 MHz and 1710-2700 MHz bands, ideal for 4G/3G applications where no ground plane or metal surface is available. A mechanically robust design suitable for both indoor and outdoor applications with wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications and can therefore be used in both ceiling mount and surface mount applications. The industry standard NMO mounting socket mates with all Laird magnetic, trunk lid and hole mount configurations. A threaded permanent stud mount model is also available for vandal resistant mounting on brackets, panels, ceilings or any other kind of housing

Specifications:

• Mechanically robust for both Indoor/Outdoor applications
• Self-contained design requiring no ground plane
• Applicable for both 3G and 4G application
• Domestic LTE 700 band and Global LTE 2600 band
• WiMAX 2300/2500/2600 bands
• Domestic Cellular and Global GSM
• Phantom out-performs a 3 dBi whip in many applications
