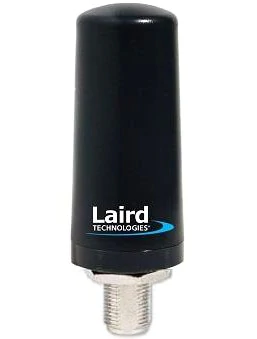

Laird TRA6927M3PBN-001 Antenna Phantom 698-960 / 1700-2700 MHz. 3.5 dBi Black N Female Connector

Laird Technologies’ unique Phantom® antenna operates simultaneously in the 698-960 MHz and 1700-2700 MHz bands, making it ideal for 4G/3G applications. The mechanically robust design is suitable for both indoor and outdoor applications with wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.

The antenna is ideal for both ceiling and surface mount applications.

The industry standard NMO mounting socket mates with all Laird Technologies’ magnetic, trunk lid and hole mount configurations. A threaded permanent stud mount model is also available for vandal resistant mounting on brackets, panels, ceilings or any other kind of housing.

Specifications:

• Mechanically robust for both

• Indoor/Outdoor applications

• Applicable for both 3G and

• 4G application

• Domestic LTE 700 band and

• Global LTE 2600 band

• WiMAX 2300/2500/2600 bands

• Domestic Cellular and Global GSM

• Phantom out-performs a 3 dBi whip in many applications

• Frequency Range 698-960 MHz, 1710-2700 MHz

• VSWR:  698-806 MHz < 2.5: 1.0 /  806-960 MHz < 2.0: 1.0 /  1710-2110 MHz < 2.0: 1.0 /  2110- 2170 MHz < 2.5: 1.0 / 2300- 2700 MHz < 2.0: 1.0

• Nominal Peak Gain:  698-960 MHz 3.5 dBi /  1710-1990 MHz 5.5 dBi /  2100-2700 MHz 4.6 dBi

• Average Efficiency:  698-960 MHz 90% (max: 96%) /  1710-1990 MHz 91% (max: 95%) /  2100-2700 MHz 80% (max: 86%)

• Polarization Vertical

• Pattern Omnidirectional

• Input Impedance 50 Ω

• Maximum Power 100 W

• Cable & Mount MB195 (Sold Separately)

• Terminations NMO or P-Mount w/Type N(f)
