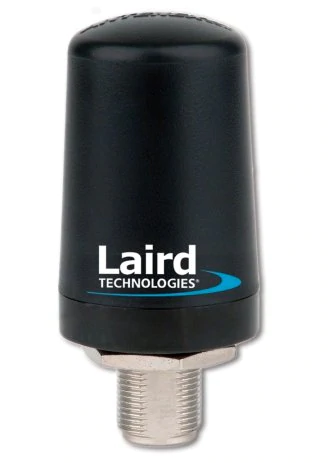

Laird TRAB24003P Antenna Phantom 2.4GHz-2.5GHz 3dBi MEG Type Female Panel Mount

Laird’s Dual-Band TRA24/4900 Series of Phantom Antennas are ideal for WLAN and 4.9 GHz public safety applications. They operate simultaneously at 2.4 GHz and 4.9 GHz and are tough antennas for outdoor or indoor applications. Their revolutionary design measures only 2.3” in height and feature both vertical and horizontal polarization. This gives them the antenna diversity, frequency agility, low visibility, wide bandwidth and low angle radiation patterns that are superior to traditional gain antennas in most applications. The industry standard NMO mounting socket mates with all of Laird’s magnetic, trunk lid, and hole mounts. A threaded permanent stud mount model is also available for vandal-resistant mounting on brackets, panels, ceilings, or any other kind of housing.

Specifications:

• Operating Frequency (MHz): 2400-2500 MHz.
• Gain (dBi): 0.7
• Elevation Beamwidth at Half -Power: 30°
• Azimuth Beamwidth at Half-Power: 130°
• VSWR: 2:1 (with 6 ft. of ATX195)
• Nominal Impedance (Ohms): 50
• Max Power - Ambient 25°C (W): 100
• Polarization: Vertical
