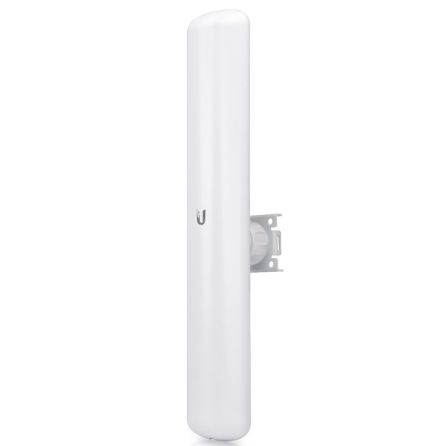

Ubiquiti LAP-120-US 5GHz 2x2 MIMO airMAX® ac Sector AP

The LAP-120 is a 5 GHz, 16 dBi, 120° airMAX® AC AP featuring an ultra-lightweight form factor. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. The ball-joint mount provides adjustment flexibility for versatile mounting options. Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.

Specifications:

• Dimensions (Mount Not Included): 452.3 x 78.7 x 54.4 mm (17.81 x 3.10 x 2.14")

• Weight (Mount Not Included): 420 g (14.82 oz)

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Antenna Gain: 16 dBi

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Supported Voltage Range: 20 - 26VDC

• ESD/EMP Protection: ± 24kV Contact / Air

• Shock and Vibrations: ETSI300-019-1.4

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 77 N @ 200 km/h (17.3 lbf @ 125 mph)

• Operating Temperature: -40 to 70° C (-40 to 158° F)

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

Operating Frequency (MHz)

US/CA

• U-NII-1   5150 - 5250

• U-NII-2A 5250 - 5350

• U-NII-2C 5470 - 5725

• U-NII-3   5725 - 5850

Worldwide 5150 - 5875
