Liknkedpro LPGYFS-24C/4KM Optical Fiber 24 Cores G.652D Singlemode Loose Tube Outdoor

The loose tubes are made of high modulus plastics (PBT) and filled with water-resistant filling gel. Loose tubes are stranded around the non-metallic central strength member (FRP), cable core is filled with water-blocking tape. The Corrugated Steel Tape is longitudinally applied over the cable core and combined with a durable Polyethylene (PE) sheath.

Specifications:

• Single-mode G.652D Loose Tube Outdoor Fiber Optic

• For installation in pipes

• Armor Type: Steel Cover

• Cover with moisture-proof water lock

• Maximum Tension: 2200N

• Sheath Material: HDPE (High-Density Polyethylene)

• Minimum Bending Radius: Installation 25D, Operation 12.5D

• Crush Resistance: 1000N/10cm

• 24 fibers

• Black Sheath

Physical Characteristics:

• Cable Diameter (D): 11.4 ± 0.5 mm

• Operating Temperature: -20ºC to +65ºC

• Price per 4 km reel / 1,300 feet

• Weight: 117 ± 15 kg/km

• Dimensions (in): 55.11 x 55.11 x 29.53

• Dimensions (mm): 1400 x 1400 x 750

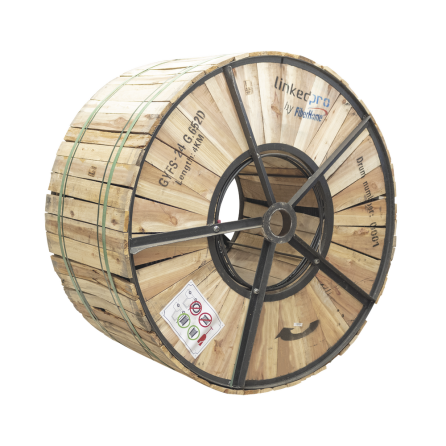

• Gross Weight of the 4 km reel: 1,301 lbs / 590 kg

Note: Contact US for freight LTL shipping, A forklift or ramp is required for loading/unloading.
