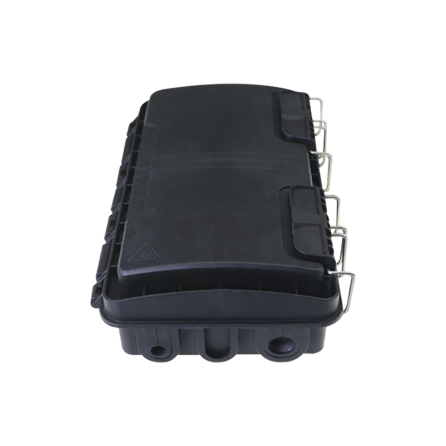

Linkedpro LP-FAB-HGT-16IN/A16 Fiber Termination Box FTTH 16 Ports 16 Adapters SC/APC IP65

LinkedPro Fiber Splitter Box provides a high-density wall-mounted, pole-mounted, and aerial-mounted solution for next-generation networks, which aims to provide and manage fiber splitters in a limited space.

Features:

• The product is made of high-quality impact-resistant plastic and has a standard user interface that can be re-opened.

• Can accommodate two 1×8 PLC splitter LGX modules or steel tube type; "Not Included"

• Anti-ultraviolet, anti-impact and waterproof function;

• Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;

• Fiber optic cable can go in and out of the box without cut the cable.

Specification:

• Dimensions (in): 11.2 x 6.9 x 4.3

• Dimension (mm): 285 x 175 x 110

• Cable diameter (mm): Φ7-φ18

• Dimension 2.0 x 0.4 x 0.3 in / 52 x 9 x 8.1mm

• Inlet Ports

Port 1: 6 ~ 9mm

Port 2: 9 ~ 12mm

Port 3: 12 ~ 15mm

• 6 ports in total (3 ports on each side of the box)

• Max. Split ratio: 2pcs 1×8 steel tube splitter

• Max. Adapter number: 16pcsr

• Max. Splice tray: 1pc

• Max. Fusion splice: 24 cores

• Outlet Ports

16 ports in total drop cable 2x3mm

(8 ports on each side of the box)
