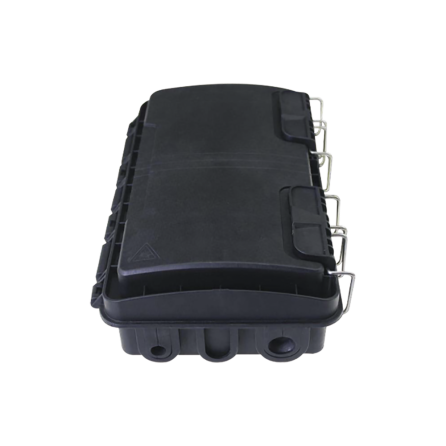

Linkedpro LP-FAB-HGT-16IN/AS8 Fiber Termination Box FTTH, 16 ports, 1x8 SC/APC Splitter , 8 SC/APC IP65

LinkedPro Fiber Splitter Box provides a high-density wall-mounted, pole-mounted, and aerial-mounted solution for next-generation networks, which aims to provide and manage fiber splitters in a limited space.

Features:

• The product is made of high-quality impact-resistant plastic and has a standard user interface that can be re-opened.

• Can accommodate two 1×8 PLC splitter LGX modules or steel tube type; include 1x8 splitter

• Anti-ultraviolet, anti-impact and waterproof function;

• Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;

• Fiber optic cable can go in and out of the box without cut the cable.

Specification:

• Dimension (in):  11.2 x 6.9 x 4.3.

• Dimension (mm): 285 * 175 * 110

• Cable diameter (mm): Φ7-φ18

• Dimension: 2 x 0.4 x 0.3 in / 52 x 9 x 8.1mm

• Inlet Ports:

Port 1:    6 ~ 9mm

Port 2: 9 ~ 12mm

Port 3: 12 ~ 15mm

6 ports in total (3 ports on each side of the box)

• Max. Split ratio: 2pcs 1×8 steel tube splitter

• Max. Adapter number: 16pcsr

• Max. Splice tray: 1pc

• Max. Fusion splice: 24 cores

• Outlet Ports

16 ports in total drop cable 2x3mm

(8 ports on each side of the box)
