Linkedpro LPGYFS-36C/4KM Fiber Cable 36 Cores Singlemode

The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the non-metallic central strength member (FRP), cable core is filled with water blocking tape. The Corrugated Steel Tape is longitudinally applied over the cable core, and combined with a durable Polyethylene (PE) sheath.

Specifications:

• Single-mode fiber G.652D Loose Tube for outdoors.

• 36 Cores

• Installation in a tube or direct burial.

• Steel tape armor coat.

• Water-blocking yarn and moisture-proof.

• Max. tensile strength: 2200N

• Outer sheath: HDPE (high-density polyethylene)

• Operating temperature: -20ºC ~ +65ºC

• Weight: 117 ± 15 kg/km

• Cable diameter (D): 11.4 ± 0.5 mm

• Crush resistance: 1000N/10cm

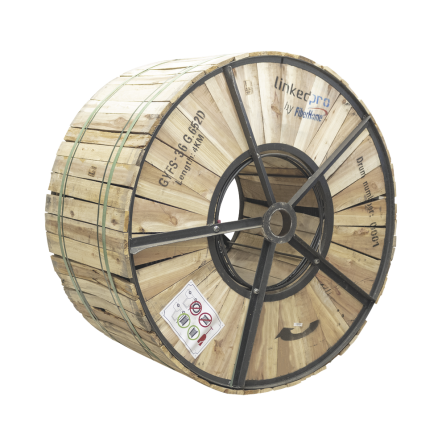

• Price per 4 km drum

• Dimensions (mm): 1400 x 1400 x 750

• Drum net weight per 4 km drum: 590 kg

Contact us for freight LTL shipping. Shipping not included
