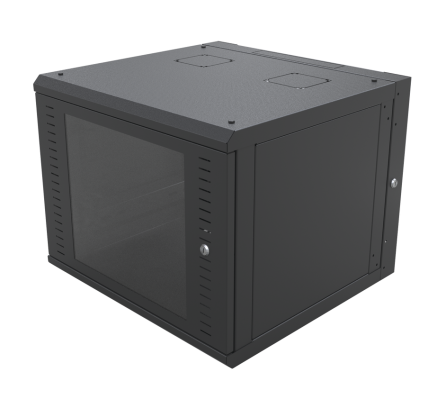

Linkedpro SR-1912-GAP-V4 19" 12 Units Rack Wall Mounted Cabinet, Tempered Glass Window

Functional features:

• The body turns on its right axis to work freely with the equipment connections.

• Impact-resistant glass window.

• Removable side.

• Removable front racks.

• Double sheet (front door and side).

• Opening at the top and bottom for wiring to the wall.

• Door can be placed to open in both directions.

• Remove the door.

• Welded frame body for more stability.

• Excellent for repeaters and surveillance equipment.

Application:

• Radio communication equipment such as repeaters and power supplies.

• Security monitoring stations, recorders and switches.

• Control data centers transmitting via air.

• Managing high-performance copper and fiber patch cable.

Physical Characteristics:

• Application: indoor.

• Material: steel.

• Weight: 75lbs

• External dimensions: 600 x 620 x 600 mm (W x H x D).

• Rack Units: 12.

*1 rack unit = 1.75'' = 44.45 mm (height)

Painting:

• Color: black, semi-matte.

• 5-step electrostatic process: degreasing, rinse, iron phosphate, rinse and sealed.

• Polyester primer.

Compatible Equipment:

• D120-120-60-G00. 6'' fan. The enclosure accepts two fans (not included).

• TORRACK. Rackmount screws.

• TUERRACK. Rackmount nuts.

• Surveillance and radio communication equipment come prepared for 19" rack installing (max. 12 units).

Recommendations:

• Ensure that the installation is performed by a trained professional.

• Check if the hardware is properly adjusted periodically.

• Set up a maintenance plan to clean the hardware.

* Color may vary. Weight without accessories and packaging. We manufacture cabinets to suit your needs. If you have any questions, please contact us.
