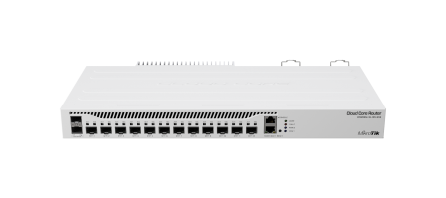

MikroTik CCR2004-1G-12S+2XS Router (1) GbE RJ45 (12) SFP+ (2) SFP28 Ports Cloud

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.

CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC

Specifications:

• Architecture: ARM 64bit

• CPU: AL32400

• CPU core count: 4

• CPU nominal frequency: 1700 MHz

• Dimensions: 443 x 224 x 44 mm

• RouterOS license: 6

• Operating System: RouterOS v7

• Size of RAM: 4 GB

• Storage size: 128 MB

• Storage type: NAND

• MTBF: Approximately 200'000 hours at 25C

• Tested ambient temperature: -20°C to 60°C

• IPsec hardware acceleration: Yes

Powering

• Number of AC inputs: 2

• AC input range: 100-240

• Max power consumption: 49 W

• Max power consumption without attachments: 32 W

• Cooling type: 2 fans

Ethernet

• 10/100/1000 Ethernet ports: 1

Fiber

• SFP+ ports: 12

• Number of 25G SFP28 ports: 2

Peripherals

• Serial console port: RJ45

• CPU temperature monitor Yes

• PCB temperature monitor Yes

• Voltage Monitor Yes

Certification & Approvals

• Certification CE, EAC, ROHS

• IP 20
