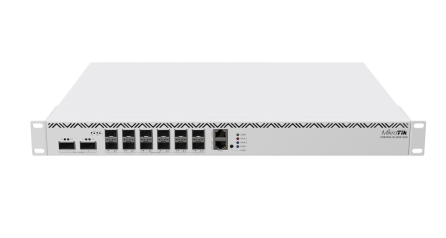

MikroTik CCR2216-1G-12XS-2XQ Router (1) 1GbE RJ45 (12) 25G (2) 100G QSFP28

Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.

But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.

You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!

Specifications:

• Architecture ARM 64bit

• CPU AL73400

• CPU core count 16

• CPU nominal frequency 2000 MHz

• Dimensions 443 x 367 x 44 mm

• RouterOS license 6

• Operating System RouterOS 7

• Size of RAM 16 GB

• Storage size 128 MB

• Storage type NAND

• MTBF Approximately 200'000 hours at 25C

• Tested ambient temperature -20°C to 60°C

Powering:

• Number of AC inputs 2

• AC input range 100-240

• Max power consumption 128 W

• Max power consumption without attachments 80 W

• Cooling type 4

Ethernet:

• 10/100/1000 Ethernet ports 1

Fiber:

• Number of 25G SFP28 ports 12

• Number of 100G QSFP28 ports 2

Peripherals

• Serial console port    RJ45

• Number of M.2 slots    2

Other

• CPU temperature monitor    Yes

• PCB temperature monitor    Yes

• Voltage Monitor    Yes

Certification & Approvals

• Certification    CE, EAC, ROHS

• IP    20
