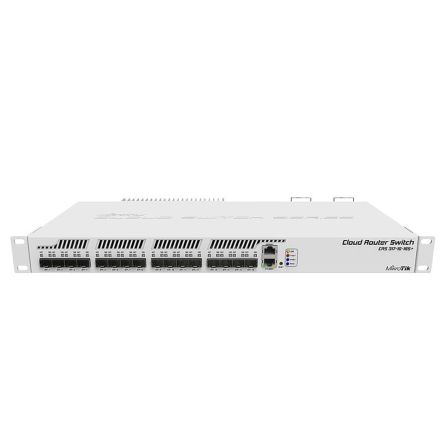

MikroTik CRS317-1G-16S+RM Switch (1) GbE (16) SFP+ Ports

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.

Specifications

• Architecture    ARM 32bit

• CPU    98DX8216

• CPU core count    2

• CPU nominal frequency    800 MHz

• Switch chip model    98DX8216

• Dimensions    443 x 224 x 44 mm

• RouterOS license    6

• Operating System    RouterOS / SwitchOS

• Size of RAM    1 GB

• Storage size    16 MB

• Storage type    FLASH

• MTBF    Approximately 200'000 hours at 25C

• Tested ambient temperature    -20°C to 60°C

Powering

• Number of AC inputs    2

• AC input range    100-240

• Number of PSU slots    2

• Frequency (Hz)    50-60

• Max power consumption    44 W

• Cooling type    2 fans

Ethernet

• 10/100/1000 Ethernet ports    1

Fiber

• SFP+ ports    16

Peripherals

• Serial console port    RJ45

Other

• CPU temperature monitor    Yes

• Beeper    Yes

Certification & Approvals

• Certification    CE, EAC, ROHS
